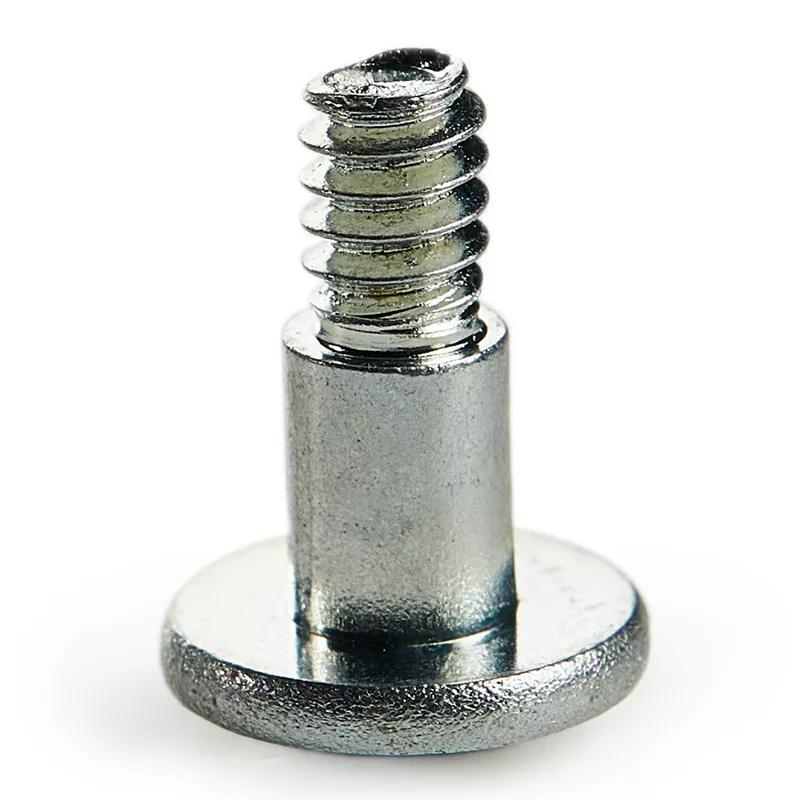

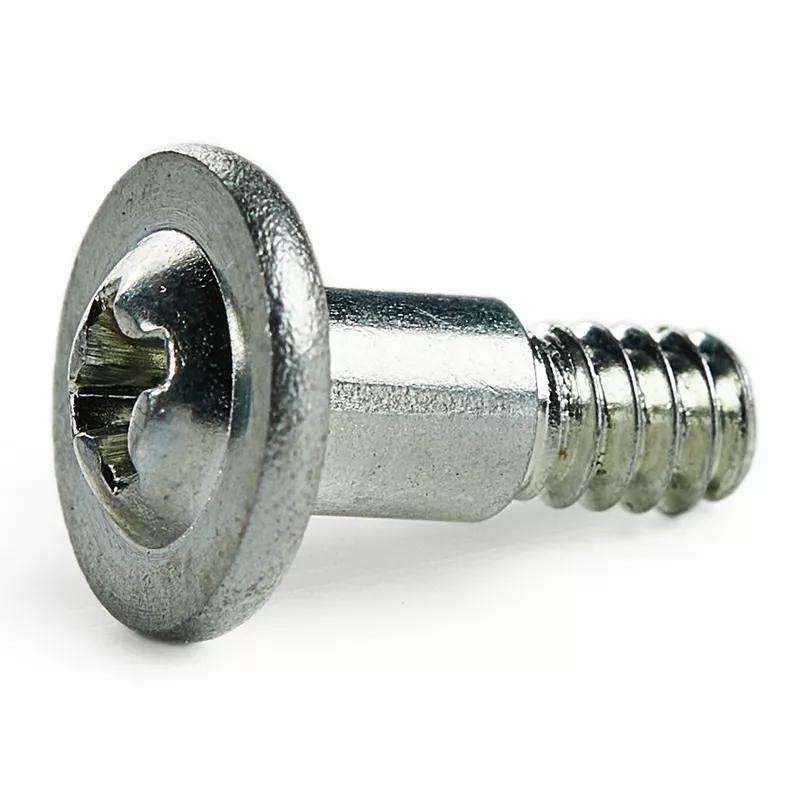

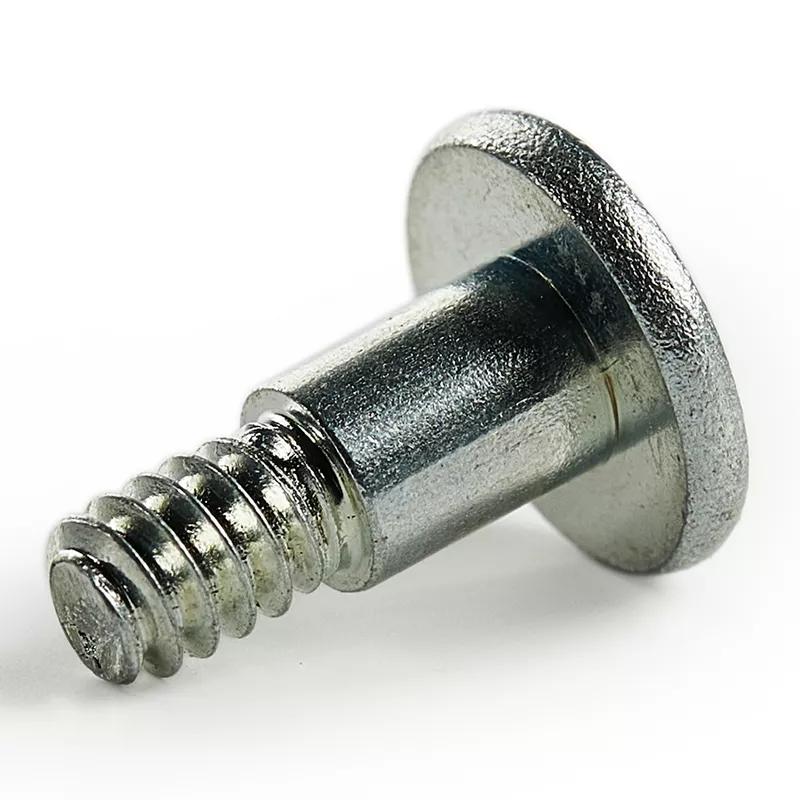

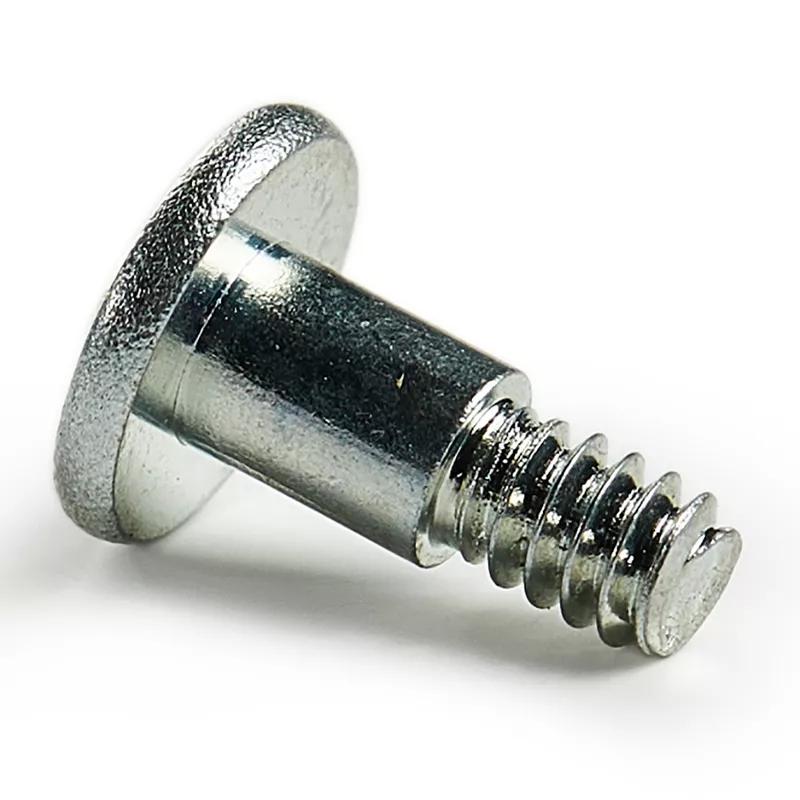

SRVGS - Vibration Grommet and Screw

A mounting set including a rubber grommet and a screw, used to reduce vibration. The grommet cushions and isolates a mounted component (like a fan or motor) from its frame, while the screw secures it. This results in quieter operation and less vibration transfer.

Essentra Part Number:

VGS-4

Product Attributes

Drive Type

Crossed Recess Drive

Inside Diameter

5.5mm

Head Diameter

8.9mm

Head Height

2.4mm

Shoulder Length

5.2mm

Thread Length

5.1mm

Finish

Zinc Plated

Shoulder Diameter

4.1mm

Lip Height

1.3mm

Thread Size

M3 x 0.5

Material

Carbon Steel
