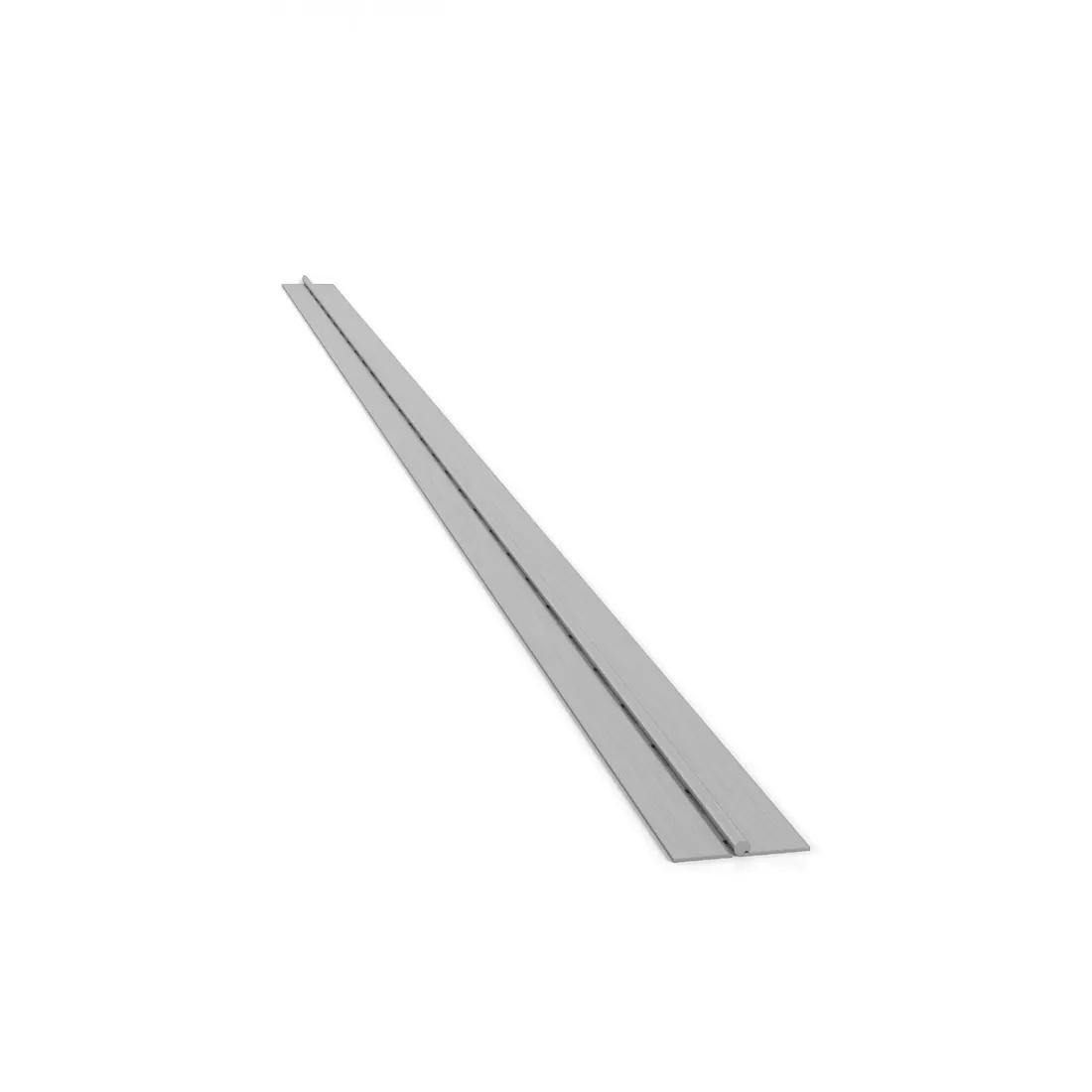

Essentra Piano Hinge 2.0 1016.0 (L) 64.0 (W) Steel
Essentra Piano Hinge 2.0 1016.0 (L) 64.0 (W) Steel - Image 2
See all 8 variants

Piano Hinge 2.0 1016.0 (L) 64.0 (W) Steel

Heavy duty continuous hinge. Sold in packs of 2x1016mm lengths. Available drilled or undrilled. Can be riveted, screwed or welded in position. Suits a wide range of commercial and engineering applications. Drilled type has holes to suit countersunk No.8 screws.

Essentra part number

10637937

Product Attributes

Material

Steel

Overall Width

64.0mm

Overall Length

1016.0mm

Overall Thickness

2.0mm

Leaf Thickness

2.0mm

Hinge Type

Undrilled Hinge

Type

1

Technical Details
