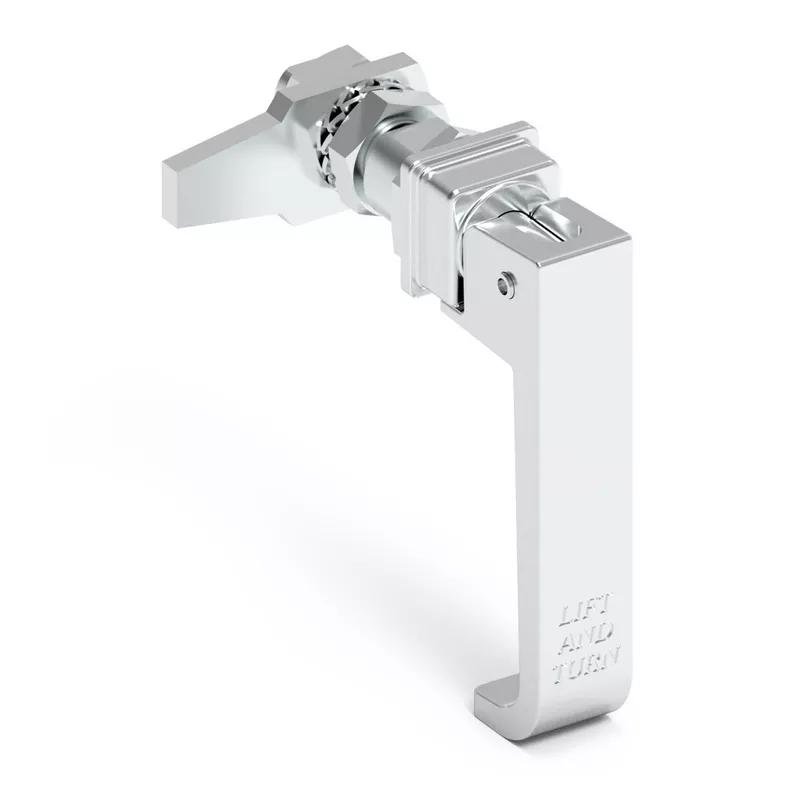

Lift-and-Turn Latch Non-Locking 57.5 Chrome Plated Zinc Alloy
A secure latch that you lift then twist to lock a panel tightly. It compresses the door against a seal when latched, ensuring a firm, rattle-free closure. Often used on cabinets and enclosures where a tight seal against dust or water is needed.
Essentra part number
20064297
Minimum Cam Reverse Grip
0.0mm
Cutout Dimensions
22.2 x 20.2 mm
Cam Length
33.0mm
Colour
Natural
Housing Height
31.0mm
Minimum Cam Forward Grip (Seed)
50.0mm
Material
Die Cast Zinc Alloy
Maximum Cam Forward Grip (Seed)
57.5mm
Coating
Chrome Plated
Maximum Cam Reverse Grip
2.5mm
Handle Height
18.0mm
Type
2
Handle Length
80.0mm
