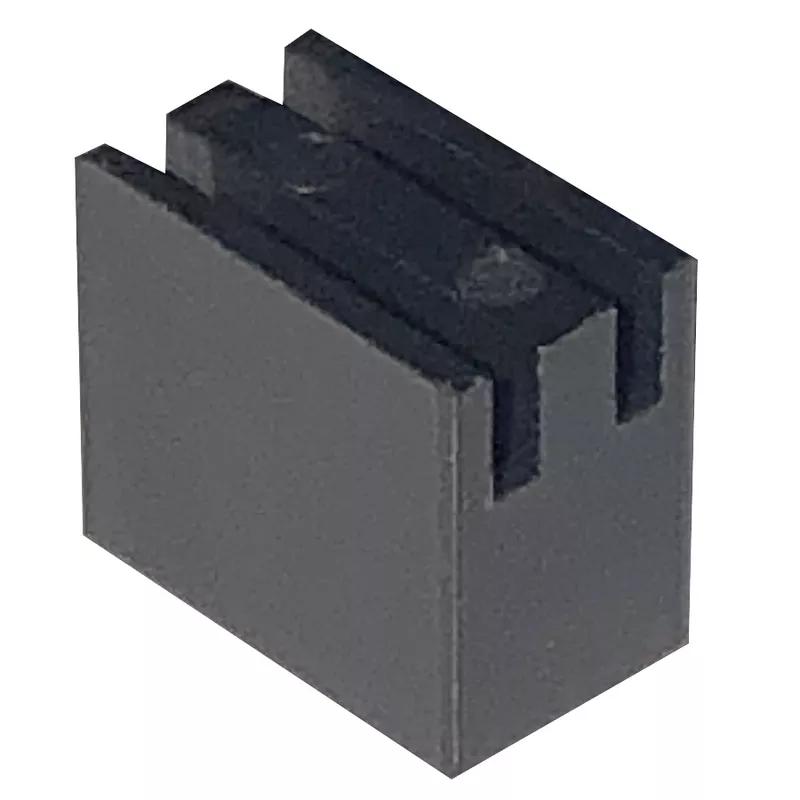

LED Holder 5.0 mm T-1 3/4 (OD) Black Nylon 6/6 (PA 6/6)
90 degree square LED holder for 5mm (T1 3/4) size LED.
Essentra part number
10314050
Material Flammability Standard
UL94 V-2
Colour
Black
Inside Height
4.8mm
Maximum Hole Diameter
6.5mm
Distance Between Fixing Holes
2.5mm
UL/CSA Description
UL E41871
Overall Depth
8.7mm
Max. Inside Width
4.8 mm
Centre to Edge Distance
2.8mm
Maximum Operating Temperature
90°C
Minimum Operating Temperature
-40°C
Material
Nylon 6/6
Width
6.0mm
