SROFR - O-Ring Face-Fitting Caps for UNF and JIC Threads
Designed to protect O-ring face seal connectors used on hydraulic connections. Designed with a longer overall length and includes a moulded retaining ring at the bottom that snaps under the connector so it will not fall off the connector.
Essentra part number
1056795
Colour
Blue

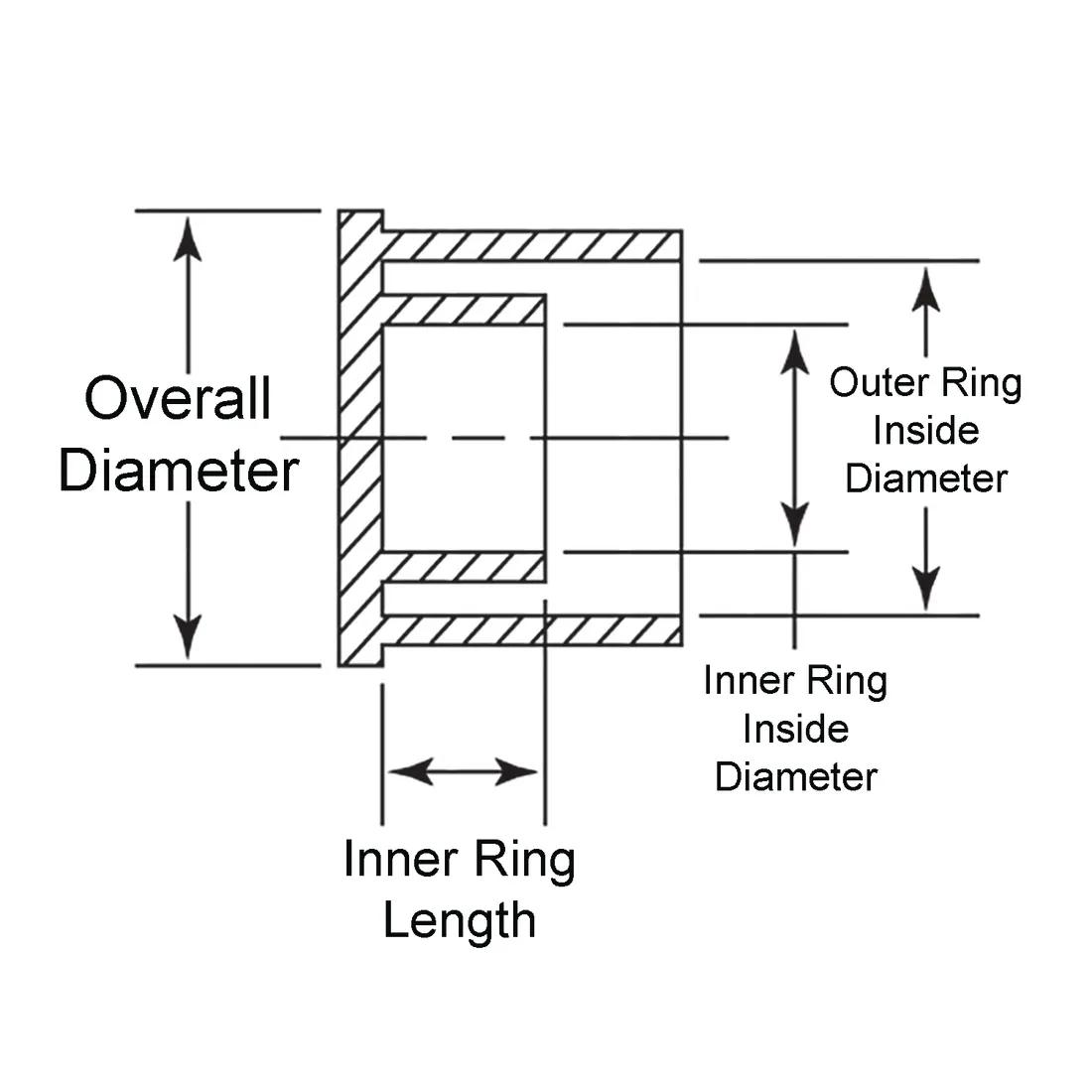

Inner Ring Length
0.570in
Outer Ring Inside Diameter
1.489in
JIC Fitting Size
12
Inner Ring Inside Diameter
0.960in
Outer Ring Length
1.150in
Thread Size
1 1/16 in - 12 JIC
Material
LDPE
Overall Diameter
1.580in
