Essentra SRSPFT - Plugs with First-Thread Protection

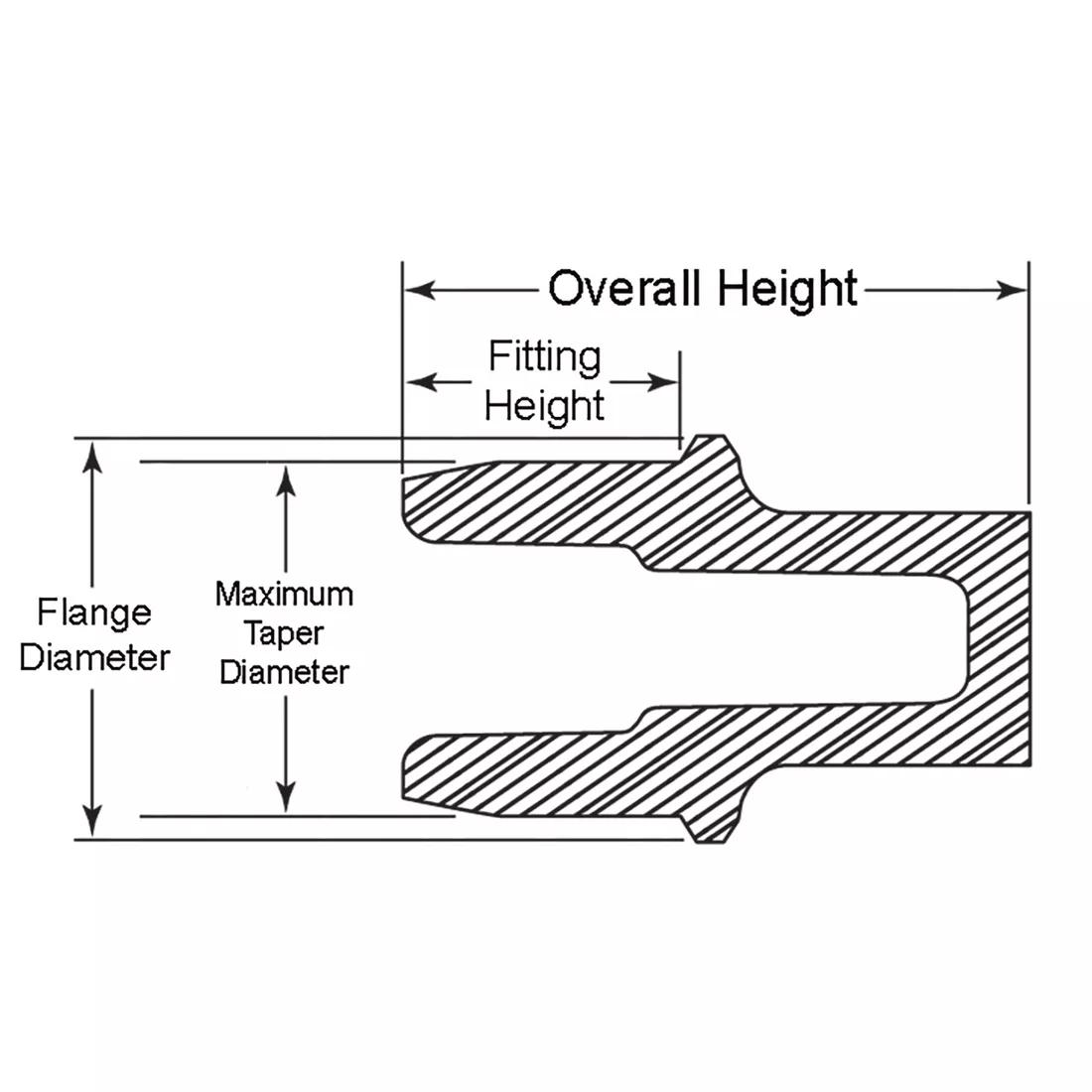

Essentra SRSPFT - Plugs with First-Thread Protection - Line drawing
See all 11 variants

SRSPFT - Plugs with First-Thread Protection

Provides masking to the first thread of standard female threads. Ergonomically-friendly pull tab for simple installation and removal. EPDM: a more economical material with slightly reduced heat resistance, but superior chemical resistance. Also reusable.

Essentra part number

1037555

Product Attributes

Colour

Black

Length Under Head

7.0mm

Fitting Diameter

9.1mm

Hardness

50 Shore A

Overall Height

24.0mm

Maximum Temperature

425°F

Material

EPDM

Overall Diameter

10.4mm
