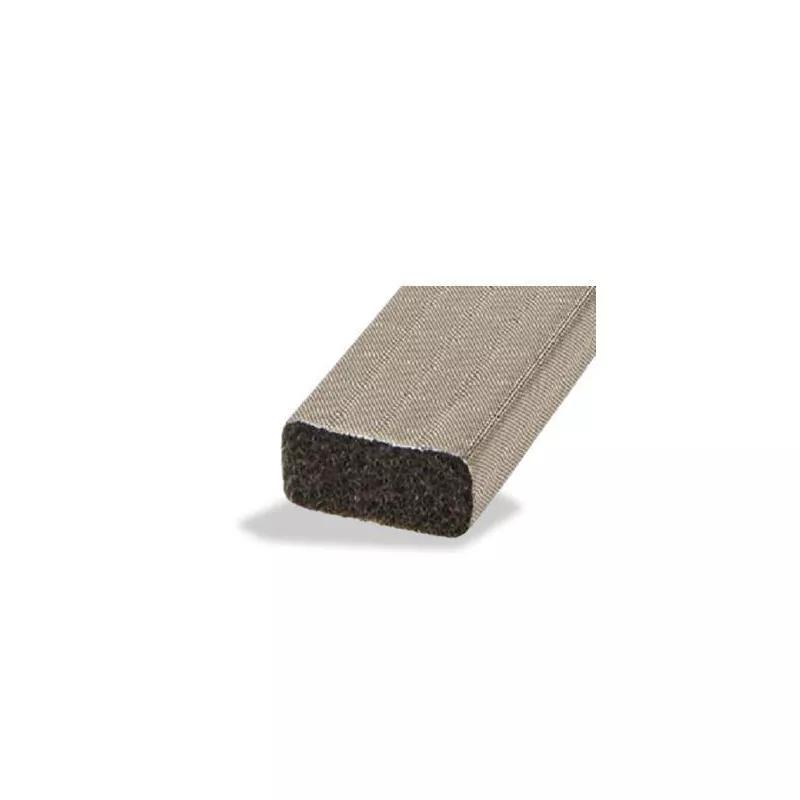

SR6500 - EMI Gasketing
EMI Gasket reduce radiated emissions from boxes and enclosures. Wide bandwidth response 0.1-180 GHz. High noise reducing characteristics 80-90dB. Low Resistivity 0.8 Ω-cm. Adhesive base for simple installation. Maximum uncut length 1 metre.
Essentra product code:
552047
Noise Level
80 - 90 dB
Material Flammability Standard
UL94 V-0
Compression
10 - 25%
Material
PU Foam

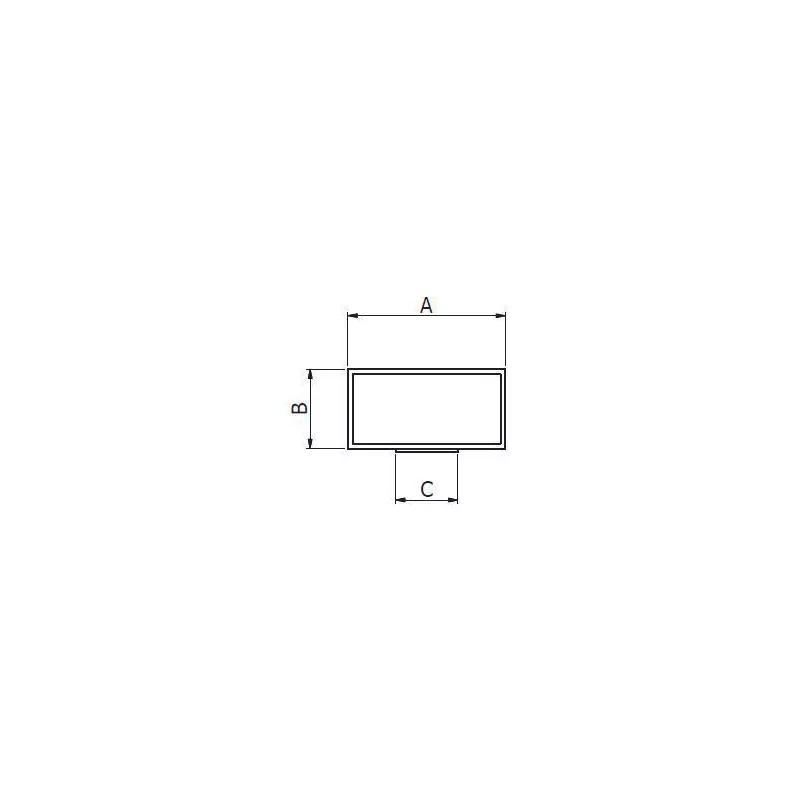

Overall Width
12.7mm
Resistivity
0.8 Ω-cm
Adhesive Width
5.0mm
Overall Height
6.4mm
Shape
Rectangular
Type
4
Mount Type
Adhesive Tape Non Conductive
Band Width (Seed)
0.1 - 180GHz
Colour
Natural
