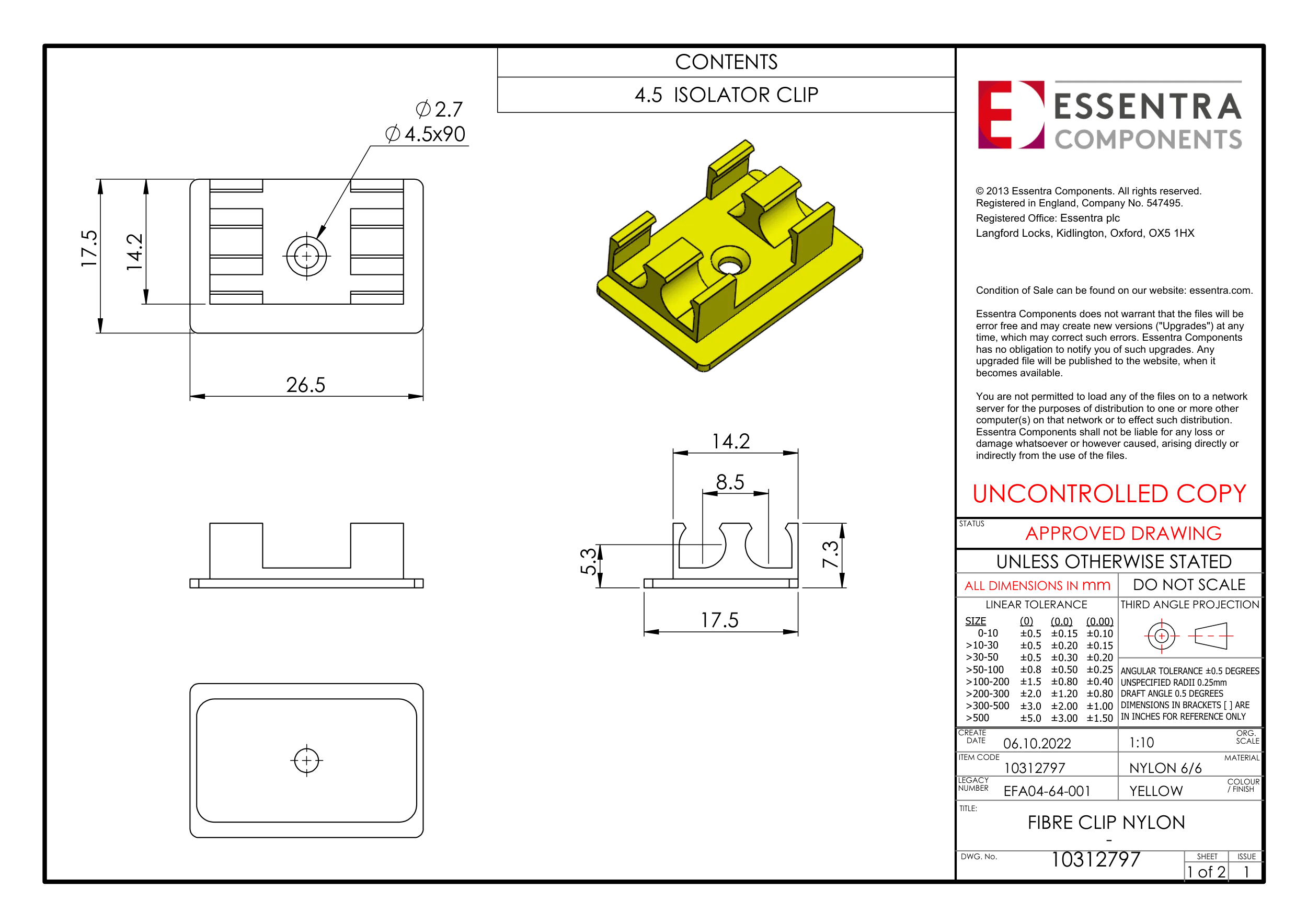

Fibre Clip 26.5 mm 7.33 mm 17.5 mm Yellow Nylon 6
Fibre Clip is designed with two slots to organize 4.5 mm fibre optic cables while protecting them from damage and stress. It can be used in the Array Tray EFA04-25-001 and hold two components of parallel diameters. It is designed to be clip on. Yellow made from Nylon and UL94 V-0 flame rated.
Essentra part number
EFA04-64-001
Material Flammability Standard
UL94 V-0
Colour
Yellow
Hole Diameter
2.7 mm Countersunk, 4.5 mm x 90
Material
Nylon 6
Overall Width
17.5mm
Overall Length
26.5mm
Length to Cable Bundle Centre Distance
5.3 mm
Hole Centre Distance
8.5 mm
Overall Height
7.33mm
Style
2
Clip Width
14.2mm
