Fibre Clip 26.5 mm 8.0 mm 17.5 mm Red Nylon 6
Fibre Clip is designed with two slots to organize 6.0 mm fibre optic cables while protecting them from damage and stress. It can be used in the Array Tray EFA04-25-001 and hold two components of parallel diameters. It is designed to be adhesive mounted. Red made from Nylon and UL94 V-0 flame rated.
Essentra part number
EFA04-61-ASS
Material Flammability Standard
UL94 V-0
Colour
Red

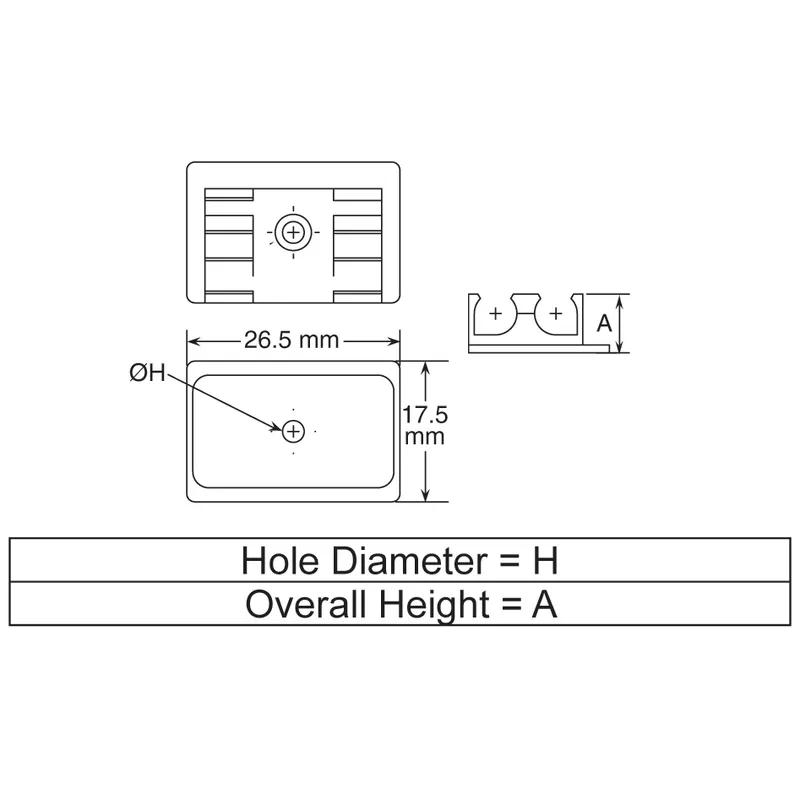

Hole Diameter
3.2 mm, 1.0mm
Material
Nylon 6
Overall Length
26.5mm
Length to Cable Bundle Centre Distance
5.3 mm
Hole Centre Distance
6.9 mm
Overall Height
8.0mm
Overall Width
17.5mm
Distance Between Fixing Holes
16.0mm
Style
1
Clip Width
14.2mm
