Clips that provide electrical or physical isolation between cables or components. Help prevent interference, reduce movement, and protect sensitive parts.
Clips that provide electrical or physical isolation between cables or components. Help prevent interference, reduce movement, and protect sensitive parts.

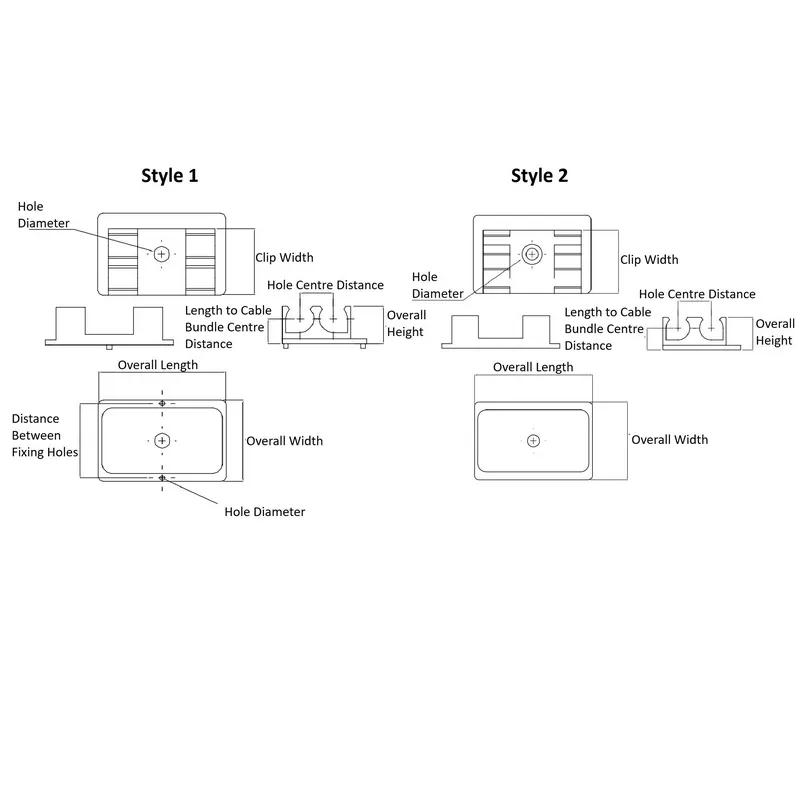

Item Code | Material Flammability Standard | Colour | Hole Diameter | Material | Overall Width | Overall Length | Length to Cable Bundle Centre Distance | Hole Centre Distance | Overall Height | Style | Variant Description | Clip Width | Title | Distance Between Fixing Holes | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UL94 V-0 | Yellow | 2.7 mm Countersunk, 4.5 mm x 90 | Nylon 6 | 17.5mm | 26.5mm | 5.3 mm | 8.5 mm | 7.33mm | 2 | Fibre Clip is designed with two slots to organize 4.5 mm fibre optic cables while protecting them from damage and stress. It can be used in the Array Tray EFA04-25-001 and hold two components of parallel diameters. It is designed to be clip on. Yellow made from Nylon and UL94 V-0 flame rated. | 14.2mm | Fibre Clip 26.5 mm 7.33 mm 17.5 mm Yellow Nylon 6 | - | ||
UL94 V-0 | Green | 2.7 mm Countersunk, 4.5 mm x 90 | Nylon 6 | 17.5mm | 26.5mm | 4.9 mm | 7.5 mm | 7.33mm | 2 | Fibre Clip is designed with two slots to organize 5.5 mm fibre optic cables while protecting them from damage and stress. It can be used in the Array Tray EFA04-25-001 and hold two components of parallel diameters. It is designed to be clip on. Green made from Nylon and UL94 V-0 flame rated. | 14.2mm | Fibre Clip 26.5 mm 7.33 mm 17.5 mm Green Nylon 6 | - | ||
UL94 V-0 | Yellow | 2.7 mm Countersunk, 4.5 mm x 90 | Nylon 6 | 17.5mm | 26.5mm | 5.3 mm | 8.5 mm | 7.33mm | 2 | Fibre Clip is designed with two slots to organize 4.5 mm fibre optic cables while protecting them from damage and stress. It can be used in the Array Tray EFA04-25-001 and hold two components of parallel diameter. It is designed to be adhesive mounted. Yellow made from Nylon and UL94 V-0 flame rated. | 14.2mm | Fibre Clip 26.5 mm 7.33 mm 17.5 mm Yellow Nylon 6 | - | ||
UL94 V-0 | Green | 2.7 mm Countersunk, 4.5 mm x 90 | Nylon 6 | 17.5mm | 26.5mm | 4.9 mm | 7.5 mm | 7.33mm | 2 | Fibre Clip is designed with two slots to organize 5.5 mm fibre optic cables while protecting them from damage and stress. It can be used in the Array Tray EFA04-25-001 and hold two components of parallel diameters. It is designed to be adhesive mounted. Green made from Nylon and UL94 V-0 flame rated. | 14.2mm | Fibre Clip 26.5 mm 7.33 mm 17.5 mm Green Nylon 6 | - | ||
UL94 V-0 | Red | 3.2 mm, 1.0mm | Nylon 6 | 17.5mm | 26.5mm | 5.3 mm | 6.9 mm | 8.0mm | 1 | Fibre Clip is designed with two slots to organize 6.0 mm fibre optic cables while protecting them from damage and stress. It can be used in the Array Tray EFA04-25-001 and hold two components of parallel diameters. It is designed to be clip on. Red made from Nylon and UL94 V-0 flame rated. | 14.2mm | Fibre Clip 26.5 mm 8.0 mm 17.5 mm Red Nylon 6 | 16.0mm | ||
UL94 V-0 | Red | 3.2 mm, 1.0mm | Nylon 6 | 17.5mm | 26.5mm | 5.3 mm | 6.9 mm | 8.0mm | 1 | Fibre Clip is designed with two slots to organize 6.0 mm fibre optic cables while protecting them from damage and stress. It can be used in the Array Tray EFA04-25-001 and hold two components of parallel diameters. It is designed to be adhesive mounted. Red made from Nylon and UL94 V-0 flame rated. | 14.2mm | Fibre Clip 26.5 mm 8.0 mm 17.5 mm Red Nylon 6 | 16.0mm |
