SR1947 - Retaining Washers

Lock and seal nuts and bolts in position.

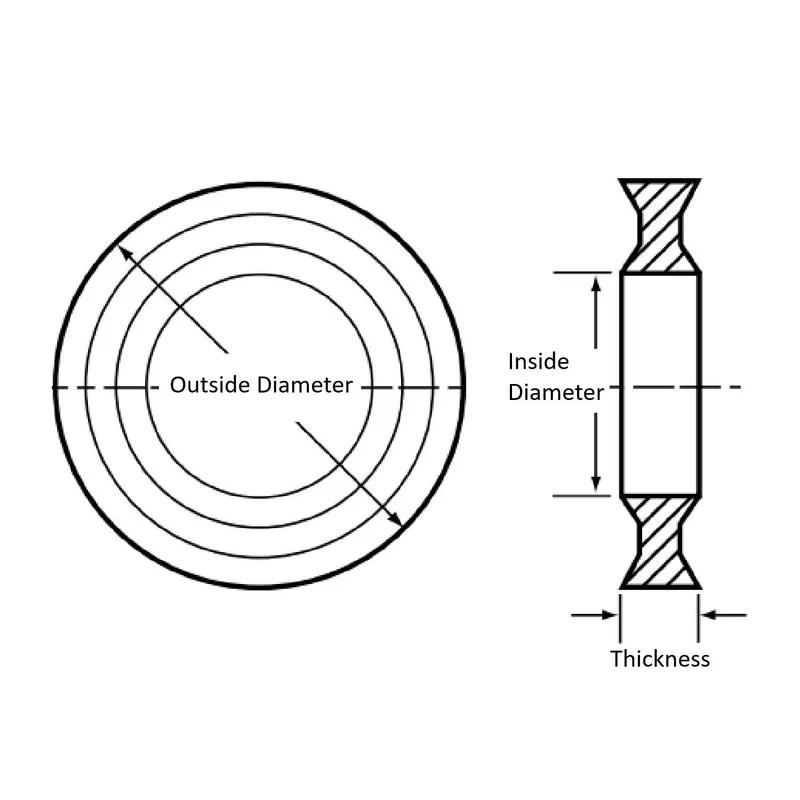

Essentra SR1947 - Retaining Washers - Line drawing

1-10 of 10 variants

Per page:

016004000001

ColourNatural

Inside Diameter4.2mm

COMPLIANCE ROHSY

COMPLIANCE REACHY

Thickness2.8mm

Washer TypeAnti-Loss Washer

FinishSmooth

Outside Diameter10.0mm

Tooth LocationInternal

Thread SizeM4

MaterialPA

Washer ShapeRound

TitleWasher 4.2 mm 10.0 mm 2.8 mm PA

016010000001

ColourNatural

Inside Diameter10.2mm

COMPLIANCE ROHSY

COMPLIANCE REACHY

Thickness5.0mm

Washer TypeAnti-Loss Washer

FinishSmooth

Outside Diameter20.0mm

Tooth LocationInternal

Thread SizeM10

MaterialPA

Washer ShapeRound

TitleWasher 10.2 mm 20.0 mm 5.0 mm PA

016008000001

ColourNatural

Inside Diameter8.2mm

COMPLIANCE ROHSY

COMPLIANCE REACHY

Thickness4.2mm

Washer TypeAnti-Loss Washer

FinishSmooth

Outside Diameter16.2mm

Tooth LocationInternal

Thread SizeM8

MaterialPA

Washer ShapeRound

TitleWasher 8.2 mm 16.2 mm 4.2 mm PA

016012000001

ColourNatural

Inside Diameter12.2mm

COMPLIANCE ROHSY

COMPLIANCE REACHY

Thickness5.2mm

Washer TypeAnti-Loss Washer

FinishSmooth

Outside Diameter24.0mm

Tooth LocationInternal

Thread SizeM12

MaterialPA

Washer ShapeRound

TitleWasher 12.2 mm 24.0 mm 5.2 mm PA

016002000001

ColourNatural

Inside Diameter2.1mm

COMPLIANCE ROHSY

COMPLIANCE REACHY

Thickness1.7mm

Washer TypeAnti-Loss Washer

FinishSmooth

Outside Diameter5.0mm

Tooth LocationInternal

Thread SizeM2

MaterialPA

Washer ShapeRound

TitleWasher 2.1 mm 5.0 mm 1.7 mm PA

016006000001

ColourNatural

Inside Diameter6.2mm

COMPLIANCE ROHS-

COMPLIANCE REACH-

Thickness3.6mm

Washer TypeAnti-Loss Washer

FinishSmooth

Outside Diameter12.7mm

Tooth LocationInternal

Thread SizeM6

MaterialPA

Washer ShapeRound

Title-

016020000001

ColourNatural

Inside Diameter20.3mm

COMPLIANCE ROHSY

COMPLIANCE REACHY

Thickness6.8mm

Washer TypeAnti-Loss Washer

FinishSmooth

Outside Diameter36.0mm

Tooth LocationInternal

Thread SizeM20

MaterialPA

Washer ShapeRound

TitleWasher 20.3 mm 36.0 mm 6.8 mm PA

016005000001

ColourNatural

Inside Diameter5.2mm

COMPLIANCE ROHSY

COMPLIANCE REACHY

Thickness3.0mm

Washer TypeAnti-Loss Washer

FinishSmooth

Outside Diameter10.7mm

Tooth LocationInternal

Thread SizeM5

MaterialPA

Washer ShapeRound

TitleWasher 5.2 mm 10.7 mm 3.0 mm PA

016016000001

ColourNatural

Inside Diameter16.2mm

COMPLIANCE ROHSY

COMPLIANCE REACHY

Thickness5.9mm

Washer TypeAnti-Loss Washer

FinishSmooth

Outside Diameter30.0mm

Tooth LocationInternal

Thread SizeM16

MaterialPA

Washer ShapeRound

TitleWasher 16.2 mm 30.0 mm 5.9 mm PA

016003000001

ColourNatural

Inside Diameter3.1mm

COMPLIANCE ROHSY

COMPLIANCE REACHY

Thickness2.5mm

Washer TypeAnti-Loss Washer

FinishSmooth

Outside Diameter8.0mm

Tooth LocationInternal

Thread SizeM3

MaterialPA

Washer ShapeRound

TitleWasher 3.1 mm 8.0 mm 2.5 mm PA

Per page:

1-10 of 10

Fasteners and Fixings

Explore All Fasteners and Fixings

Washers, Spacers and Bushes

Explore All Washers, Spacers and Bushes

SR1947 - Retaining Washers

Lock and seal nuts and bolts in position.

Showing 1-10 of 10 variants

Per page:

1-10 of 10

Item Code	Colour	Inside Diameter	COMPLIANCE ROHS	COMPLIANCE REACH	Thickness	Washer Type	Finish	Outside Diameter	Tooth Location	Thread Size	Material	Washer Shape	Title
016004000001	Natural	4.2mm	Y	Y	2.8mm	Anti-Loss Washer	Smooth	10.0mm	Internal	M4	PA	Round	Washer 4.2 mm 10.0 mm 2.8 mm PA
016010000001	Natural	10.2mm	Y	Y	5.0mm	Anti-Loss Washer	Smooth	20.0mm	Internal	M10	PA	Round	Washer 10.2 mm 20.0 mm 5.0 mm PA
016008000001	Natural	8.2mm	Y	Y	4.2mm	Anti-Loss Washer	Smooth	16.2mm	Internal	M8	PA	Round	Washer 8.2 mm 16.2 mm 4.2 mm PA
016012000001	Natural	12.2mm	Y	Y	5.2mm	Anti-Loss Washer	Smooth	24.0mm	Internal	M12	PA	Round	Washer 12.2 mm 24.0 mm 5.2 mm PA
016002000001	Natural	2.1mm	Y	Y	1.7mm	Anti-Loss Washer	Smooth	5.0mm	Internal	M2	PA	Round	Washer 2.1 mm 5.0 mm 1.7 mm PA
016006000001	Natural	6.2mm	-	-	3.6mm	Anti-Loss Washer	Smooth	12.7mm	Internal	M6	PA	Round	-
016020000001	Natural	20.3mm	Y	Y	6.8mm	Anti-Loss Washer	Smooth	36.0mm	Internal	M20	PA	Round	Washer 20.3 mm 36.0 mm 6.8 mm PA
016005000001	Natural	5.2mm	Y	Y	3.0mm	Anti-Loss Washer	Smooth	10.7mm	Internal	M5	PA	Round	Washer 5.2 mm 10.7 mm 3.0 mm PA
016016000001	Natural	16.2mm	Y	Y	5.9mm	Anti-Loss Washer	Smooth	30.0mm	Internal	M16	PA	Round	Washer 16.2 mm 30.0 mm 5.9 mm PA
016003000001	Natural	3.1mm	Y	Y	2.5mm	Anti-Loss Washer	Smooth	8.0mm	Internal	M3	PA	Round	Washer 3.1 mm 8.0 mm 2.5 mm PA
