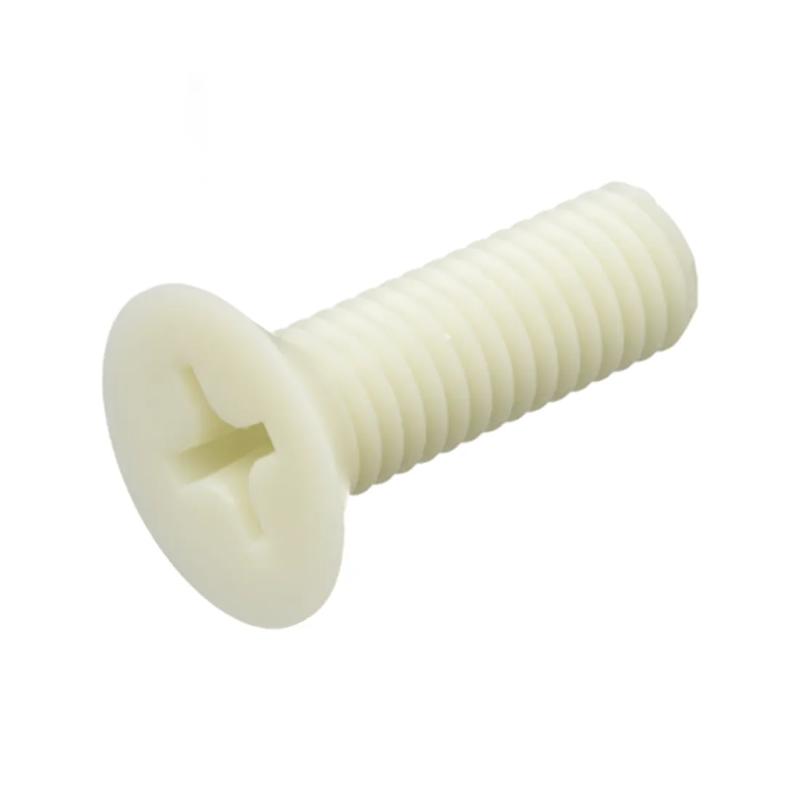

SRK0058 - Reny Countersunk Crossed Screw
50% glass filled nylon. High strength and modulus of elasticity. Good oil resistance. Working temperature 105 degrees. Available in natural and black.
Item Code | Drive Type | Material Flammability Standard | Colour | Countersunk Screw Degree | Screw Type | Overall Length | Head Diameter | Maximum Operating Temperature | Head Type | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
1440045 | Crossed Drive | UL94 HB | Black | 90° | Machine Screw | 8.0mm | 4.0mm | 105°C | Countersunk Head | M2 | Reny | |
1440059 | Crossed Drive | UL94 HB | Black | 90° | Machine Screw | 6.0mm | 8.0mm | 105°C | Countersunk Head | M4 | Reny | |
1440057 | Crossed Drive | UL94 HB | Black | 90° | Machine Screw | 20.0mm | 6.0mm | 105°C | Countersunk Head | M3 | Reny | |
1440052 | Crossed Drive | UL94 HB | Black | 90° | Machine Screw | 6.0mm | 6.0mm | 105°C | Countersunk Head | M3 | Reny | |
1440053 | Crossed Drive | UL94 HB | Black | 90° | Machine Screw | 8.0mm | 6.0mm | 105°C | Countersunk Head | M3 | Reny | |
1440054 | Crossed Drive | UL94 HB | Black | 90° | Machine Screw | 10.0mm | 6.0mm | 105°C | Countersunk Head | M3 | Reny | |
1440049 | Crossed Drive | UL94 HB | Black | 90° | Machine Screw | 8.0mm | 5.2mm | 105°C | Countersunk Head | M2.6 | Reny | |
1440048 | Crossed Drive | UL94 HB | Black | 90° | Machine Screw | 6.0mm | 5.2mm | 105°C | Countersunk Head | M2.6 | Reny | |
1440056 | Crossed Drive | UL94 HB | Black | 90° | Machine Screw | 15.0mm | 6.0mm | 105°C | Countersunk Head | M3 | Reny |
1440045
Drive Type
Crossed Drive
Material Flammability Standard
UL94 HB
Colour
Black
Countersunk Screw Degree
90°
1440059
Drive Type
Crossed Drive
Material Flammability Standard
UL94 HB
Colour
Black
Countersunk Screw Degree
90°
1440057
Drive Type
Crossed Drive
Material Flammability Standard
UL94 HB
Colour
Black
Countersunk Screw Degree
90°
1440052
Drive Type
Crossed Drive
Material Flammability Standard
UL94 HB
Colour
Black
Countersunk Screw Degree
90°
