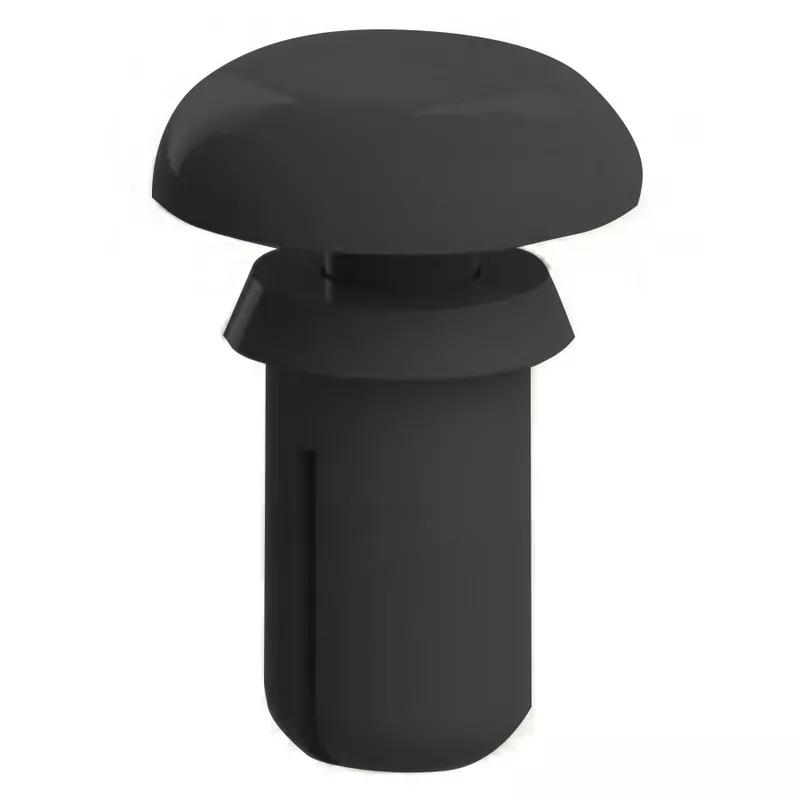

SRLT - Snap Rivet Locking Type

1-1 of 1 variants

Per page:

SRLT-1

Pin Head Diameter12.2mm

COMPLIANCE REACHY

Minimum Panel Thickness2.4mm

Overall Height10.1mm

Rivet Fitting StyleSnap-In

Maximum Operating Temperature115°C

Pin ColourWhite

Material Flammability StandardUL94 V-2

Minimum Hole Diameter4.1mm

Maximum Hole Diameter4.2mm

Rivet TypeLocking

Minimum Operating Temperature-40°C

Head ShapeRound

Pin Head Height2.0mm

Grommet MaterialNylon 6

UL/CSA DescriptionUL E41871

Anchor Length4.3mm

Maximum Panel Thickness1.6mm

Head Diameter12.2mm

Head Height2.0mm

COMPLIANCE ROHSY

Grommet ColourBlack

Anchor Diameter4.0 mm

Rivet Head ShapeRound

Per page:

1-1 of 1

Fasteners and Fixings

Explore All Fasteners and Fixings

Rivets and Panel Fasteners

Explore All Rivets and Panel Fasteners

SRLT - Snap Rivet Locking Type

Showing 1-1 of 1 variants

Per page:

1-1 of 1

Item Code	Pin Head Diameter	COMPLIANCE REACH	Minimum Panel Thickness	Overall Height	Rivet Fitting Style	Maximum Operating Temperature	Pin Colour	Material Flammability Standard	Minimum Hole Diameter	Maximum Hole Diameter	Rivet Type	Minimum Operating Temperature	Head Shape	Pin Head Height	Grommet Material	UL/CSA Description	Anchor Length	Maximum Panel Thickness	Head Diameter	Head Height	COMPLIANCE ROHS	Grommet Colour	Anchor Diameter	Rivet Head Shape	Request Quote
SRLT-1	12.2mm	Y	2.4mm	10.1mm	Snap-In	115°C	White	UL94 V-2	4.1mm	4.2mm	Locking	-40°C	Round	2.0mm	Nylon 6	UL E41871	4.3mm	1.6mm	12.2mm	2.0mm	Y	Black	4.0 mm	Round
