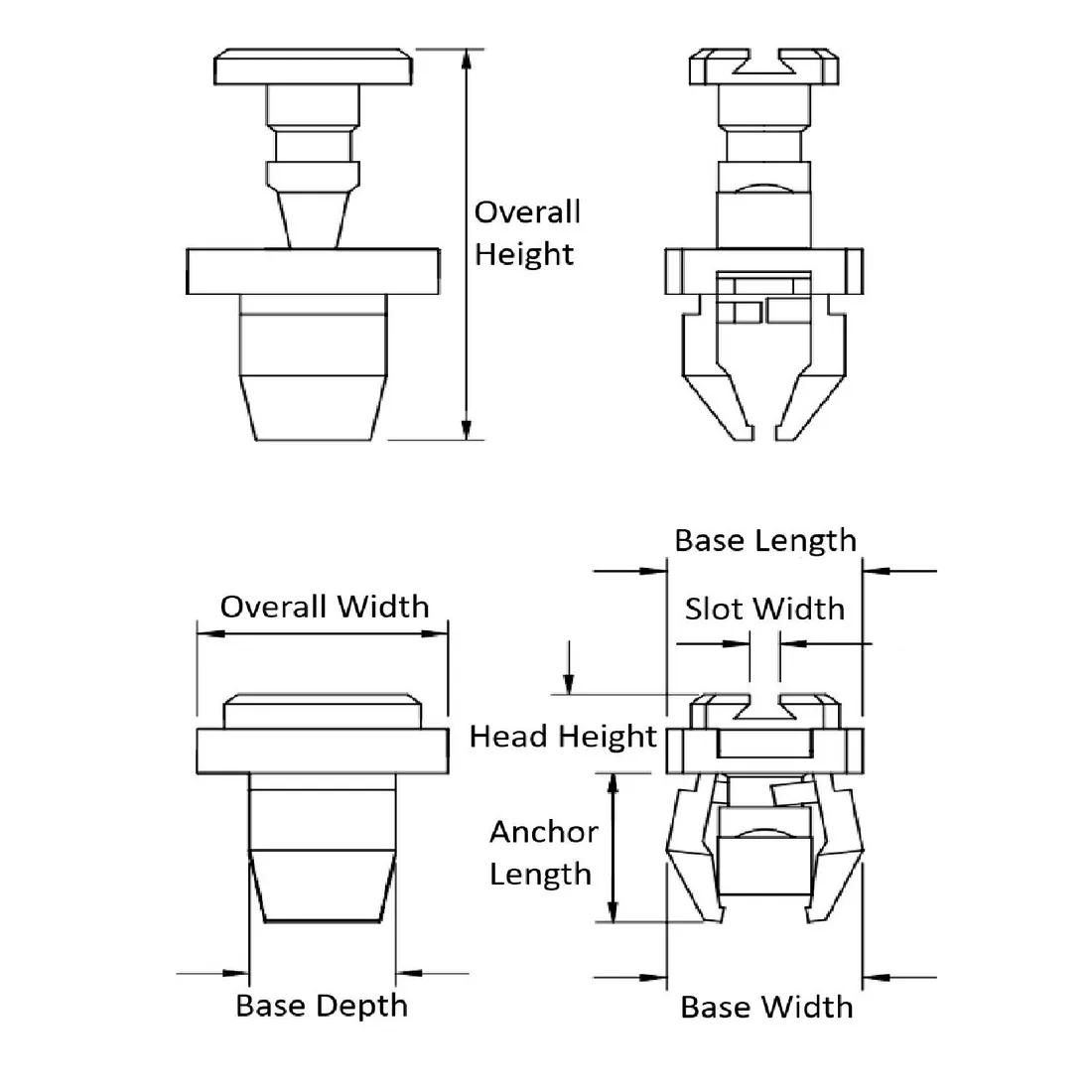

SRFQT - Quarter Turn Panel Fastener
Easily installed by driving the plunger into the grommet with a hammer locking the two panels together. Panels are easily separated using a screwdriver to rotate the plunger a quarter turn.
Showing 1-2 of 2
Per page:1-2 of 2
Item Code | Material Flammability Standard | Colour | Removable Panel Thickness | Material | Anchor Length | Maximum Panel Thickness | Base Width | Head Height | Overall Height | Type | Overall Width | Slot Width | Base Depth | Base Length | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FQT-1 | UL94 HB | White | 1.0 - 1.5 mm | Acetal | 11.9mm | 2.7mm | 11.4mm | 6.3mm | 31.2mm | Bộ kết hợp pittông/ống thông | 14.6mm | 1.8mm | 8.5mm | 11.4mm | 1.0mm | |
FQT-1BK | UL94 HB | Black | 1.0 - 1.5 mm | Acetal | 11.9mm | 2.7mm | 11.4mm | 6.3mm | 31.2mm | Bộ kết hợp pittông/ống thông | 14.6mm | 1.8mm | 8.5mm | 11.4mm | 1.0mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
FQT-1
Material Flammability Standard
UL94 HB
Colour
White
Removable Panel Thickness
1.0 - 1.5 mm
Material
Acetal
FQT-1BK
Material Flammability Standard
UL94 HB
Colour
Black
Removable Panel Thickness
1.0 - 1.5 mm
Material
Acetal
