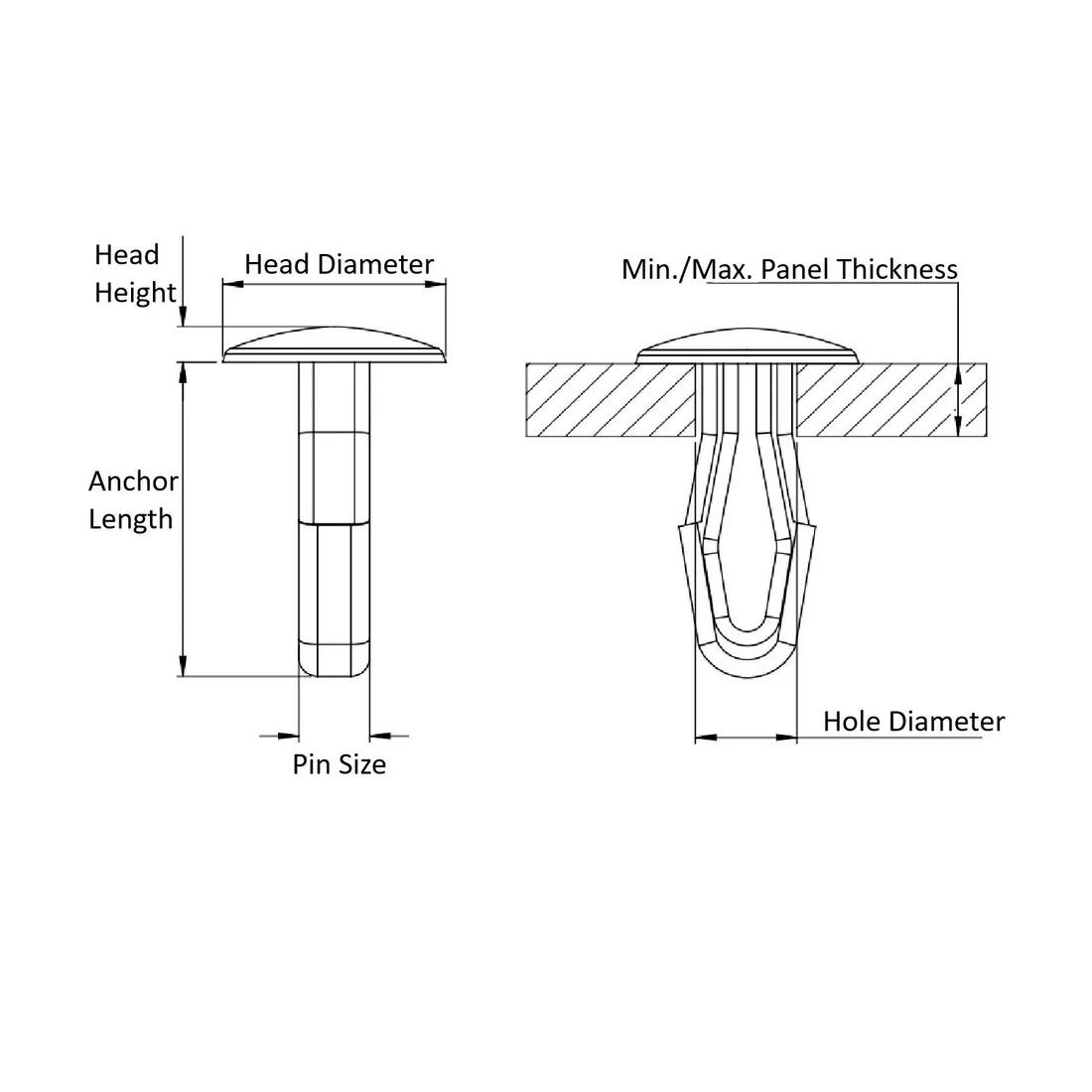

Item Code | Material Flammability Standard | Colour | Hole Diameter | Rivet Head Shape | Minimum Panel Thickness | Variant Description | Rivet Fitting Style | Maximum Operating Temperature | Title | Material Type | Rivet Type | Minimum Operating Temperature | Material | UL/CSA Description | Anchor Length | Maximum Panel Thickness | Head Diameter | Head Height | COMPLIANCE ROHS | COMPLIANCE REACH | Pin Size (Seed) | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UL94 HB | Natural | 6.4mm | Truss | 1.5mm | Snap rivets are designed for assemblies requiring fast, economical fasteners with tool-free installation. These a have a domed head and are made from black Nylon 6/66, RMS-103 - giving them good thermal and electrical insulation properties. Rated to UL 94 V-0. | Push-In | 100°C | Push-In Rivet 1.5 mm 6.5 mm Acetal Natural | RMS-14A | Drive Fastener | -50°C | Acetal | UL E38860 | 17.0mm | 6.5mm | 12.0mm | 2.0mm | Y | Y | 3.9mm | ||
UL94 HB | Natural | 4.7mm | Truss | 1.0mm | Snap rivets are designed for assemblies requiring fast, economical fasteners with tool-free installation. These a have a domed head and are made from black Nylon 6/66, RMS-103 - giving them good thermal and electrical insulation properties. Rated to UL 94 V-0. | Push-In | 100°C | Push-In Rivet 1.0 mm 5.5 mm Acetal Natural | RMS-14A | Drive Fastener | -50°C | Acetal | UL E38860 | 15.0mm | 5.5mm | 10.0mm | 1.7mm | Y | Y | 3.4mm | ||
UL94 HB | Natural | 7.8mm | Truss | 1.5mm | Snap rivet made from black Nylon 66/6 that has been manufactured to UL94 V0 rating. Fast and economical, can be installed with no tools. The two piece moulded fastener comes assembled and ready to use. Specially designed legs expand and firmly lock the components permanently in place. | Push-In | 100°C | Push-In Rivet 1.5 mm 7.0 mm Acetal Natural | RMS-14A | Drive Fastener | -50°C | Acetal | UL E38860 | 19.0mm | 7.0mm | 14.0mm | 2.2mm | Y | Y | 4.2mm | ||
UL94 HB | Natural | 4.7mm | Truss | 1.0mm | Snap rivet made from black Nylon 66/6 that has been manufactured to UL94 V0 rating. Fast and economical, can be installed with no tools. The two piece moulded fastener comes assembled and ready to use. Specially designed legs expand and firmly lock the components permanently in place. | Push-In | 100°C | Push-In Rivet 1.0 mm 5.5 mm Acetal Natural | RMS-14A | Drive Fastener | -50°C | Acetal | UL E38860 | 15.0mm | 5.5mm | 11.0mm | 2.9mm | Y | Y | 3.4mm | ||
UL94 HB | Natural | 3.9mm | Truss | 1.0mm | Snap Rivet mate from black Nylon 6/6 that is rated UL94 V2. Fast and economical, can be installed with no tools. The two piece moulded fastener comes assembled and ready to use. Specially designed legs expand and securely lock the components permanently in place. | Push-In | 100°C | Push-In Rivet 1.0 mm 5.0 mm Acetal Natural | RMS-14A | Drive Fastener | -50°C | Acetal | UL E38860 | 14.0mm | 5.0mm | 9.0mm | 1.6mm | Y | Y | 2.9mm | ||
UL94 HB | Natural | 3.2mm | Truss | 1.0mm | Snap Rivet made from black Nylon 6/6 with a rating of UL94 V2. Fast and economical, can be installed with the need of no tools. Specially designed legs expand and firmly lock the components permanently in place. | Push-In | 100°C | Push-In Rivet 1.0 mm 4.5 mm Acetal Natural | RMS-14A | Drive Fastener | -50°C | Acetal | UL E38860 | 13.0mm | 4.5mm | 8.0mm | 1.5mm | Y | Y | 2.7mm | ||
UL94 HB | Natural | 5.5mm | Truss | 6.0mm | This push rivet is made from black Nylon 6/6 6/6 and has a truss head shape. Offers a fast, economical joining solution with good electrical insulation properties. Can be installed using a push rivet hand tool for faster installation. Install by placing rivet into hole and pushing plunger into the rivet to expand legs to lock in place. | Push-In | 100°C | Push-In Rivet 6.0 mm 9.0 mm Acetal Natural | RMS-14A | Drive Fastener | -50°C | Acetal | UL E38860 | 17.5mm | 9.0mm | 12.0mm | 2.0mm | Y | Y | 3.8mm |
