Easy finger-pressure assembly. Good electrical insulation. Vibration, abrasion and corrosion resistant.
Easy finger-pressure assembly. Good electrical insulation. Vibration, abrasion and corrosion resistant.

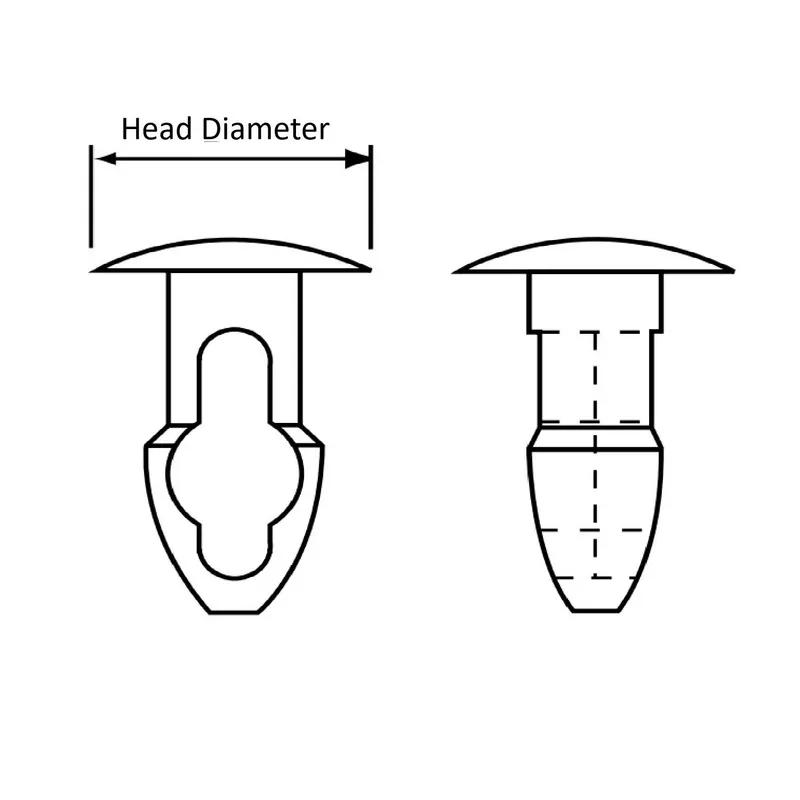

Item Code | Material Flammability Standard | Colour | Rivet Type | Hole Diameter | Head Diameter | COMPLIANCE ROHS | COMPLIANCE REACH | Rivet Head Shape | Variant Description | Panel Thickness | Rivet Fitting Style | Maximum Operating Temperature | Title | Minimum Operating Temperature | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UL94 V-2 | Natural | Key Hole Clip | 0.125in | 0.250in | Y | Y | Truss | Keyhole Clips offer an easy finger-pressure assembly. They also have good electrical insulation properties, and offer resistance to vibration, abrasion and corrosion. | 0.188in | Push-In | 85°C | Push-In Rivet 4.8 mm 4.8 mm Nylon 6/6 Natural | -40°C | Nylon 6/6 | ||
UL94 V-2 | Natural | Key Hole Clip | 0.156in | 0.312in | Y | Y | Truss | Keyhole Clips offer an easy finger-pressure assembly. They also have good electrical insulation properties, and offer resistance to vibration, abrasion and corrosion. | 0.187in | Push-In | 85°C | Push-In Rivet 4.7 mm 4.8 mm Nylon 6/6 Natural | -40°C | Nylon 6/6 | ||
UL94 V-2 | Natural | Key Hole Clip | 0.125in | 0.250in | Y | Y | Truss | Keyhole Clips offer an easy finger-pressure assembly. They also have good electrical insulation properties, and offer resistance to vibration, abrasion and corrosion. | 0.093in | Push-In | 85°C | Push-In Rivet 2.4 mm 2.4 mm Nylon 6/6 Natural | -40°C | Nylon 6/6 | ||
UL94 V-2 | Natural | Key Hole Clip | 0.156in | 0.312in | Y | Y | Truss | Keyhole Clips offer an easy finger-pressure assembly. They also have good electrical insulation properties, and offer resistance to vibration, abrasion and corrosion. | 0.093in | Push-In | 85°C | Push-In Rivet 2.4 mm 2.4 mm Nylon 6/6 Natural | -40°C | Nylon 6/6 | ||
UL94 V-2 | Natural | Key Hole Clip | 0.156in | 0.312in | Y | Y | Truss | Keyhole Clips offer an easy finger-pressure assembly. They also have good electrical insulation properties, and offer resistance to vibration, abrasion and corrosion. | 0.125in | Push-In | 85°C | Push-In Rivet 3.2 mm 3.2 mm Nylon 6/6 Natural | -40°C | Nylon 6/6 | ||
UL94 V-2 | Natural | Key Hole Clip | 0.125in | 0.250in | Y | Y | Truss | Keyhole Clips offer an easy finger-pressure assembly. They also have good electrical insulation properties, and offer resistance to vibration, abrasion and corrosion. | 0.125in | Push-In | 85°C | Push-In Rivet 3.2 mm 3.2 mm Nylon 6/6 Natural | -40°C | Nylon 6/6 | ||
UL94 V-2 | Natural | Key Hole Clip | 0.219in | 0.343in | Y | Y | Truss | Keyhole Clips offer an easy finger-pressure assembly. They also have good electrical insulation properties, and offer resistance to vibration, abrasion and corrosion. | 0.093in | Push-In | 85°C | Push-In Rivet 2.4 mm 2.4 mm Nylon 6/6 Natural | -40°C | Nylon 6/6 | ||
UL94 V-2 | Natural | Key Hole Clip | 0.156in | 0.312in | Y | Y | Truss | Keyhole Clips offer an easy finger-pressure assembly. They also have good electrical insulation properties, and offer resistance to vibration, abrasion and corrosion. | 0.375in | Push-In | 85°C | Push-In Rivet 9.5 mm 9.5 mm Nylon 6/6 Natural | -40°C | Nylon 6/6 | ||
UL94 V-2 | Natural | Key Hole Clip | 0.125in | 0.250in | Y | Y | Truss | Keyhole Clips offer an easy finger-pressure assembly. They also have good electrical insulation properties, and offer resistance to vibration, abrasion and corrosion. | 0.250in | Push-In | 85°C | Push-In Rivet 6.4 mm 6.4 mm Nylon 6/6 Natural | -40°C | Nylon 6/6 | ||
UL94 V-2 | Natural | Key Hole Clip | 0.125in | 0.250in | Y | Y | Truss | Keyhole Clips offer an easy finger-pressure assembly. They also have good electrical insulation properties, and offer resistance to vibration, abrasion and corrosion. | 0.219in | Push-In | 85°C | Push-In Rivet 5.6 mm 5.6 mm Nylon 6/6 Natural | -40°C | Nylon 6/6 |
