Ideal to fasten thin gauge material, or mount lightweight component. Suitable for front panel mounting.
Ideal to fasten thin gauge material, or mount lightweight component. Suitable for front panel mounting.

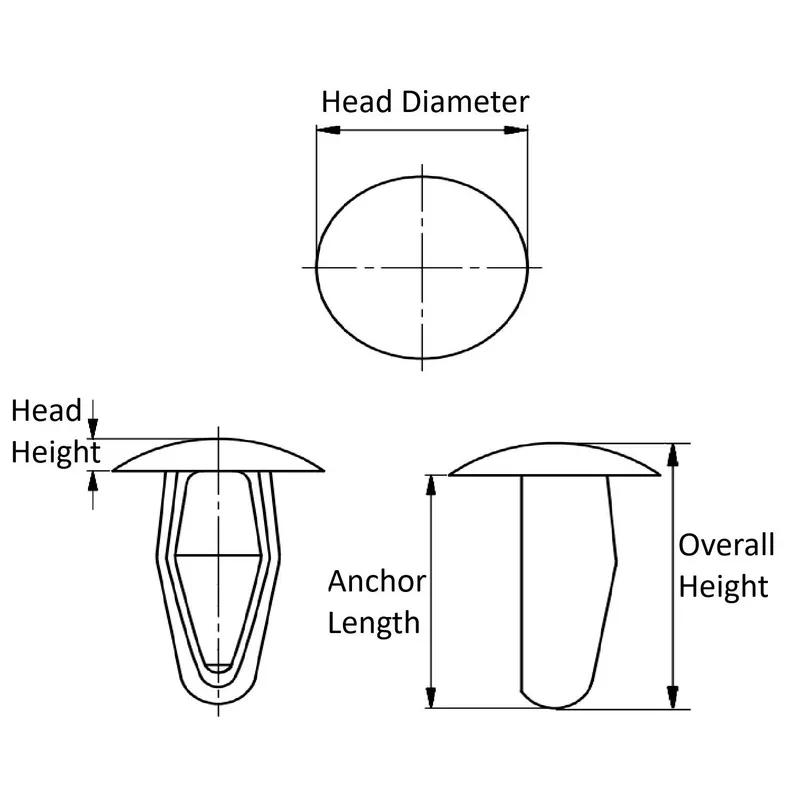

Item Code | Material Flammability Standard | Colour | Maximum Hole Diameter | Material | Anchor Length | COMPLIANCE REACH | Minimum Panel Thickness | Variant Description | Title | Maximum Panel Thickness | Head Diameter | Head Height | COMPLIANCE ROHS | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

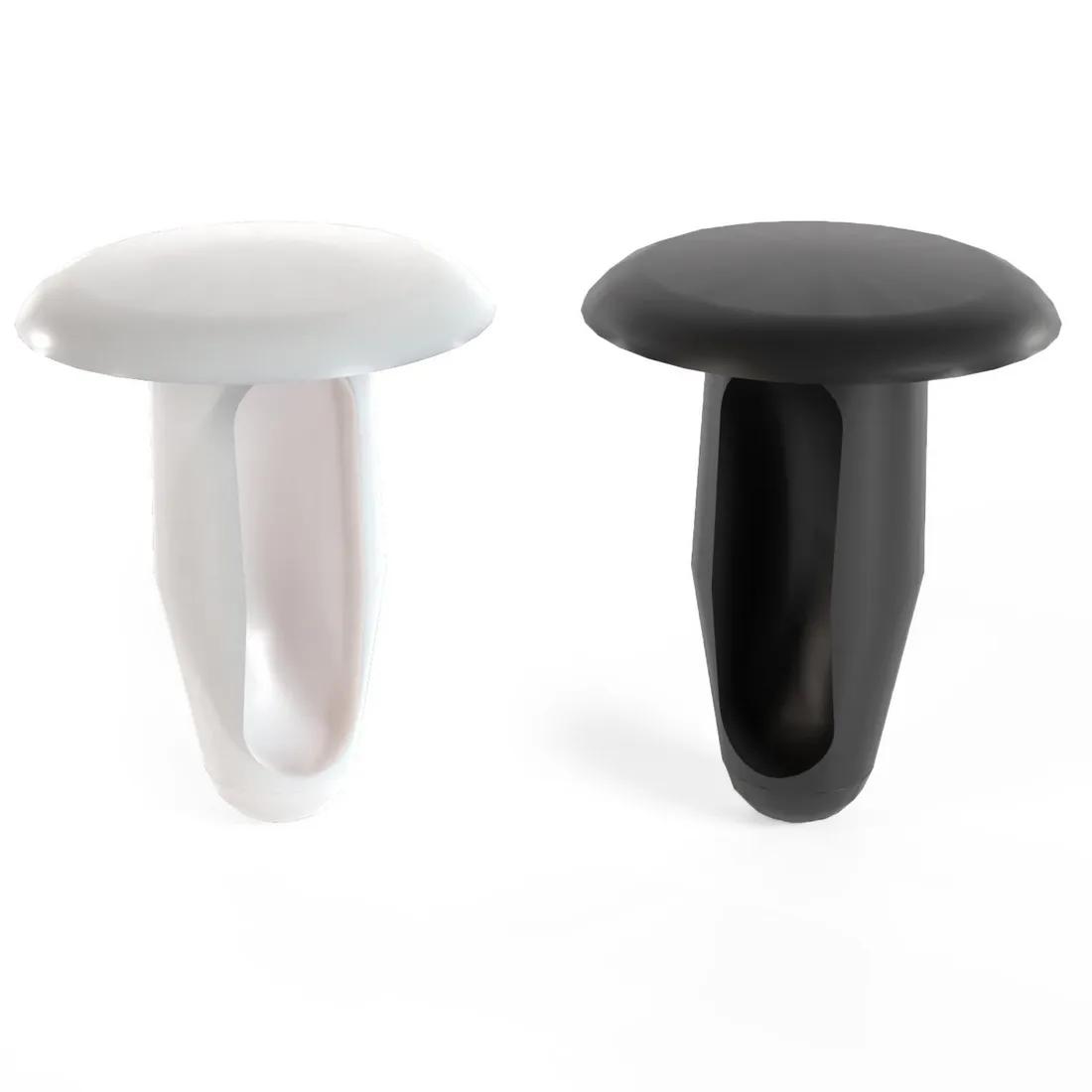

UL94 V-2 | Natural | 0.138in | Nylon 6/6 | 0.433in | Y | 0.034in | This Canoe Clip provides a fast way to assemble and secure materials together. For installation, snap the clip into the round panel hole and apply pressure to the head of the clip. It provides excellent electrical insulation, is removable and resilient to vibration, abrasion and corrosion. | Push-In Rivet 0.9 mm 4.0 mm Nylon 6/6 Natural | 0.157in | 0.406in | 0.097in | Y | ||
UL94 V-2 | Natural | 0.138in | Nylon 6/6 | 0.433in | Y | 0.034in | This Canoe Clip provides a fast way to assemble and secure materials together. For installation, snap the clip into the round panel hole and apply pressure to the head of the clip. It provides excellent electrical insulation, is removable and resilient to vibration, abrasion and corrosion. | Push-In Rivet 0.9 mm 4.0 mm Nylon 6/6 Natural | 0.157in | 0.406in | 0.189in | Y | ||
UL94 V-2 | Natural | 0.138in | Nylon 6/6 | 0.512in | Y | 0.094in | This Canoe Clip provides a fast way to assemble and secure materials together. For installation, snap the clip into the round panel hole and apply pressure to the head of the clip. It provides excellent electrical insulation, is removable and resilient to vibration, abrasion and corrosion. | Push-In Rivet 2.4 mm 5.8 mm Nylon 6/6 Natural | 0.228in | 0.299in | 0.043in | Y | ||
UL94 V-2 | Black | 0.138in | Nylon 6/6 | 0.433in | Y | 0.034in | This Canoe Clip provides a fast way to assemble and secure materials together. For installation, snap the clip into the round panel hole and apply pressure to the head of the clip. It provides excellent electrical insulation, is removable and resilient to vibration, abrasion and corrosion. | Push-In Rivet 0.9 mm 4.0 mm Nylon 6/6 Black | 0.157in | 0.406in | 0.189in | Y | ||
UL94 V-2 | Black | 0.110in | Nylon 6/6 | 0.471in | Y | 0.031in | This Canoe Clip provides a fast way to assemble and secure materials together. For installation, snap the clip into the round panel hole and apply pressure to the head of the clip. It provides excellent electrical insulation, is removable and resilient to vibration, abrasion and corrosion. | Push-In Rivet 0.8 mm 3.6 mm Nylon 6/6 Black | 0.142in | 0.307in | 0.047in | Y | ||
- | Natural | 0.110in | Nylon 6/6 | 0.471in | Y | 0.031in | This Canoe Clip provides a fast way to assemble and secure materials together. For installation, snap the clip into the round panel hole and apply pressure to the head of the clip. It provides excellent electrical insulation, is removable and resilient to vibration, abrasion and corrosion. | Push-In Rivet 0.8 mm 3.6 mm Nylon 6/6 Natural | 0.142in | 0.307in | 0.047in | Y | ||
UL94 V-2 | Black | 0.197in | Nylon 6/6 | 0.433in | Y | 0.059in | This Canoe Clip provides a fast way to assemble and secure materials together. For installation, snap the clip into the round panel hole and apply pressure to the head of the clip. It provides excellent electrical insulation, is removable and resilient to vibration, abrasion and corrosion. | Push-In Rivet 1.5 mm 3.5 mm Nylon 6/6 Black | 0.138in | 0.374in | 0.063in | Y | ||
UL94 V-2 | Black | 0.138in | Nylon 6/6 | 0.433in | Y | 0.034in | This Canoe Clip provides a fast way to assemble and secure materials together. For installation, snap the clip into the round panel hole and apply pressure to the head of the clip. It provides excellent electrical insulation, is removable and resilient to vibration, abrasion and corrosion. | Push-In Rivet 0.9 mm 4.0 mm Nylon 6/6 Black | 0.157in | 0.406in | 0.097in | Y | ||
UL94 V-2 | Natural | 0.197in | Nylon 6/6 | 0.567in | Y | 0.118in | This Canoe Clip provides a fast way to assemble and secure materials together. For installation, snap the clip into the round panel hole and apply pressure to the head of the clip. It provides excellent electrical insulation, is removable and resilient to vibration, abrasion and corrosion. | Push-In Rivet 3.0 mm 6.0 mm Nylon 6/6 Natural | 0.236in | 0.543in | 0.087in | Y | ||
UL94 V-2 | Black | 0.189in | Nylon 6/6 | 0.433in | Y | 0.031in | This Canoe Clip provides a fast way to assemble and secure materials together. For installation, snap the clip into the round panel hole and apply pressure to the head of the clip. It provides excellent electrical insulation, is removable and resilient to vibration, abrasion and corrosion. | Push-In Rivet 0.8 mm 4.0 mm Nylon 6/6 Black | 0.157in | 0.374in | 0.059in | Y |
