Fast, economical, permanent. Rivet expands for secure tight fit. Good electrical insulation. Vibration, abrasion and corrosion resistant. Installation tool available for faster fixing.
Fast, economical, permanent. Rivet expands for secure tight fit. Good electrical insulation. Vibration, abrasion and corrosion resistant. Installation tool available for faster fixing.

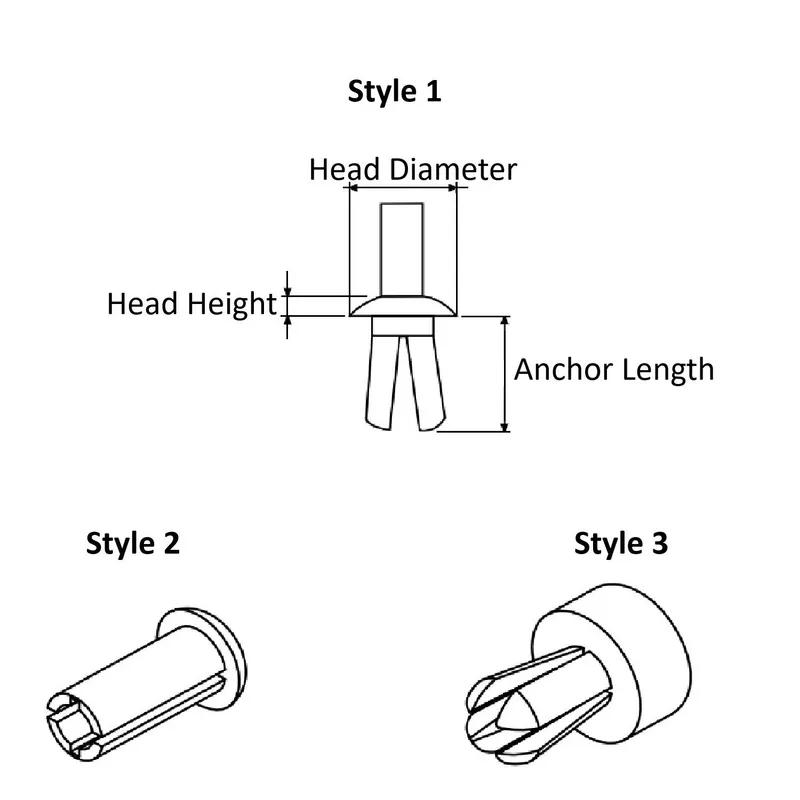

Item Code | Material Flammability Standard | Colour | Rivet Type | Hole Diameter | Anchor Length | COMPLIANCE REACH | Rivet Head Shape | Minimum Panel Thickness | Rivet Fitting Style | Maximum Operating Temperature | Title | Minimum Operating Temperature | Material | Maximum Panel Thickness | Head Diameter | Head Height | COMPLIANCE ROHS | Style | Variant Description | Counterbore Hole Size | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UL94 V-2 | Natural | Spreading Rivet | 4.8mm | 9.7mm | Y | Truss | 4.0mm | Push-In | 85°C | Push-In Rivet 4.0 mm 7.1 mm Nylon 6/6 Natural | -40°C | Nylon 6/6 | 7.1mm | 10.9mm | 1.5mm | Y | 1 | Load Spreading Rivets provide a fast, economical and permanent fastening solution. They are installed by placing the rivet body into a panel hole and pushing the pre-assembled plunger downwards into the assembly. The rivet expands in the application, providing a firm and snug fit. These rivets provide solid connections by means of blind side fixing. | - | ||
UL94 V-2 | Black | Spreading | - | 6.8mm | Y | Truss | 1.0mm | Push-In | 85°C | Push-In Rivet 1.0 mm 5.0 mm Nylon 6/6 Black | -40°C | Nylon 6/6 | 5.0mm | 6.0mm | 1.3mm | Y | 1 | Load Spreading Rivets provide a fast, economical and permanent fastening solution. They are installed by placing the rivet body into a panel hole and pushing the pre-assembled plunger downwards into the assembly. The rivet expands in the application, providing a firm and snug fit. These rivets provide solid connections by means of blind side fixing. | 3.5mm | ||
UL94 V-2 | Natural | Spreading | - | 7.4mm | Y | Truss | 1.6mm | Push-In | 85°C | Push-In Rivet 1.6 mm 4.7 mm Nylon 6/6 Natural | -40°C | Nylon 6/6 | 4.7mm | 8.7mm | 2.5mm | Y | 1 | Load Spreading Rivets provide a fast, economical and permanent fastening solution. They are installed by placing the rivet body into a panel hole and pushing the pre-assembled plunger downwards into the assembly. The rivet expands in the application, providing a firm and snug fit. These rivets provide solid connections by means of blind side fixing. | 4.8mm | ||
UL94 V-2 | Black | Spreading | - | 10.0mm | Y | Truss | 3.0mm | Push-In | 85°C | Push-In Rivet 3.0 mm 7.0 mm Nylon 6/6 Black | -40°C | Nylon 6/6 | 7.0mm | 11.0mm | 2.0mm | Y | 1 | Load Spreading Rivets provide a fast, economical and permanent fastening solution. They are installed by placing the rivet body into a panel hole and pushing the pre-assembled plunger downwards into the assembly. The rivet expands in the application, providing a firm and snug fit. These rivets provide solid connections by means of blind side fixing. | 6.0mm | ||
UL94 V-2 | Natural | Spreading | - | 11.0mm | Y | Truss | 4.0mm | Push-In | 85°C | Push-In Rivet 4.0 mm 8.7 mm Nylon 6/6 Natural | -40°C | Nylon 6/6 | 8.7mm | 7.1mm | 1.2mm | Y | 1 | Load Spreading Rivets provide a fast, economical and permanent fastening solution. They are installed by placing the rivet body into a panel hole and pushing the pre-assembled plunger downwards into the assembly. The rivet expands in the application, providing a firm and snug fit. These rivets provide solid connections by means of blind side fixing. | 4.8mm | ||
UL94 V-2 | Black | Spreading | - | 7.4mm | Y | Truss | 1.5mm | Push-In | 85°C | Push-In Rivet 1.5 mm 5.0 mm Nylon 6/6 Black | -40°C | Nylon 6/6 | 5.0mm | 7.1mm | 2.0mm | Y | 1 | Load Spreading Rivets provide a fast, economical and permanent fastening solution. They are installed by placing the rivet body into a panel hole and pushing the pre-assembled plunger downwards into the assembly. The rivet expands in the application, providing a firm and snug fit. These rivets provide solid connections by means of blind side fixing. | 5.0mm | ||
UL94 V-2 | Black | Spreading | - | 7.9mm | - | Truss | 1.5mm | Push-In | 85°C | - | -40°C | Nylon 6/6 | 6.0mm | 6.5mm | 1.5mm | - | 1 | - | 4.0mm | ||
UL94 V-2 | Black | Spreading | - | 12.0mm | Y | Truss | 4.0mm | Push-In | 85°C | Push-In Rivet 4.0 mm 9.5 mm Nylon 6/6 Black | -40°C | Nylon 6/6 | 9.5mm | 11.0mm | 2.0mm | Y | 1 | Load Spreading Rivets provide a fast, economical and permanent fastening solution. They are installed by placing the rivet body into a panel hole and pushing the pre-assembled plunger downwards into the assembly. The rivet expands in the application, providing a firm and snug fit. These rivets provide solid connections by means of blind side fixing. | 6.4mm | ||
UL94 V-2 | Black | Spreading | - | 7.4mm | - | Truss | 1.6mm | Push-In | 85°C | - | -40°C | Nylon 6/6 | 4.7mm | 8.7mm | 2.5mm | - | 1 | - | 4.8mm | ||
UL94 V-2 | Natural | Spreading | - | 17.5mm | Y | Truss | 4.0mm | Push-In | 85°C | Push-In Rivet 4.0 mm 12.0 mm Nylon 6/6 Natural | -40°C | Nylon 6/6 | 12.0mm | 18.0mm | 2.5mm | Y | 1 | Load Spreading Rivets provide a fast, economical and permanent fastening solution. They are installed by placing the rivet body into a panel hole and pushing the pre-assembled plunger downwards into the assembly. The rivet expands in the application, providing a firm and snug fit. These rivets provide solid connections by means of blind side fixing. | 7.1mm |
