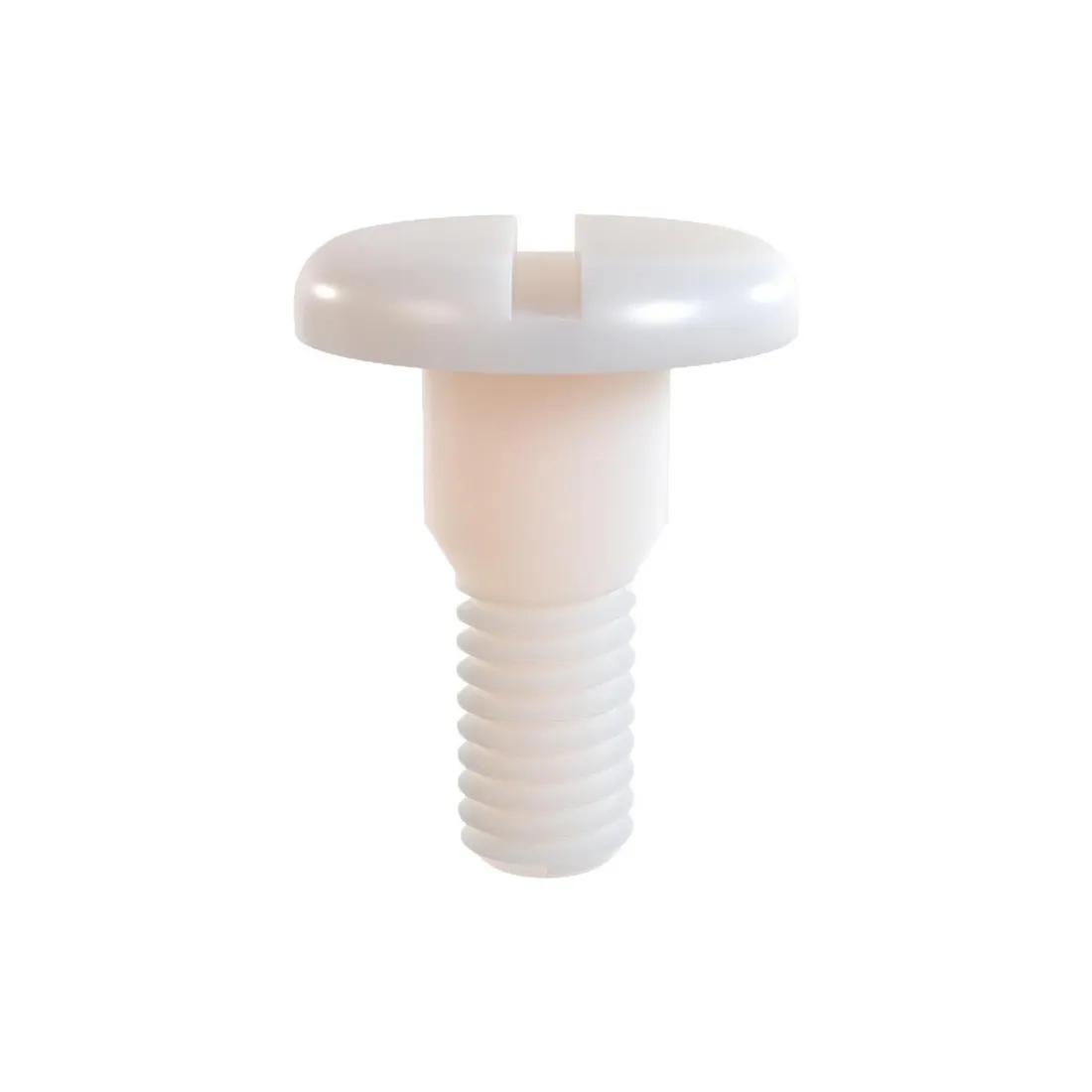

Male Binding Screw 18.0 mm 16.0 mm Nylon 6/6
This is a slotted, white Nylon book screw which is used in conjunction with a mating receptacle (Should be ordered separately). Book screws are designed to join multiple sheets by screwing into a mating part either by hand or with a flat screwdriver.
Essentra part number
082061850001
Drive Type
Slotted Drive
Material Flammability Standard
UL94 V-2
Colour
White
Screw Type
Book Screw - Male
Overall Length
21.0mm
Head Diameter
16.0mm
Shoulder Length
8.0mm
Thread Length
18.0mm
Shoulder Diameter
8.0mm
Head Type
Round Head
Thread Size
M6
Material
Nylon 6/6
Head Height
3.0mm
