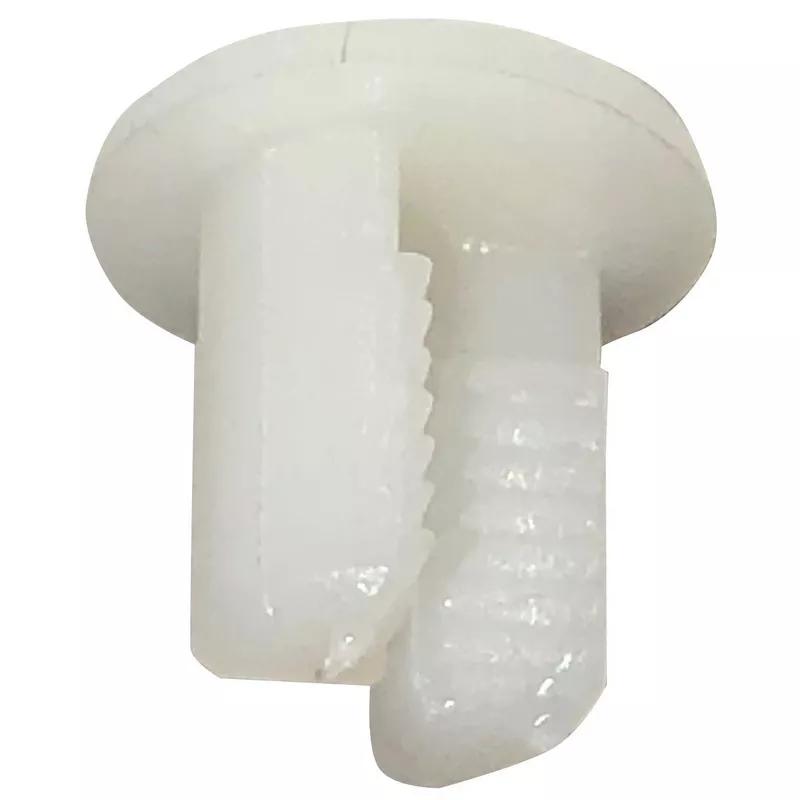

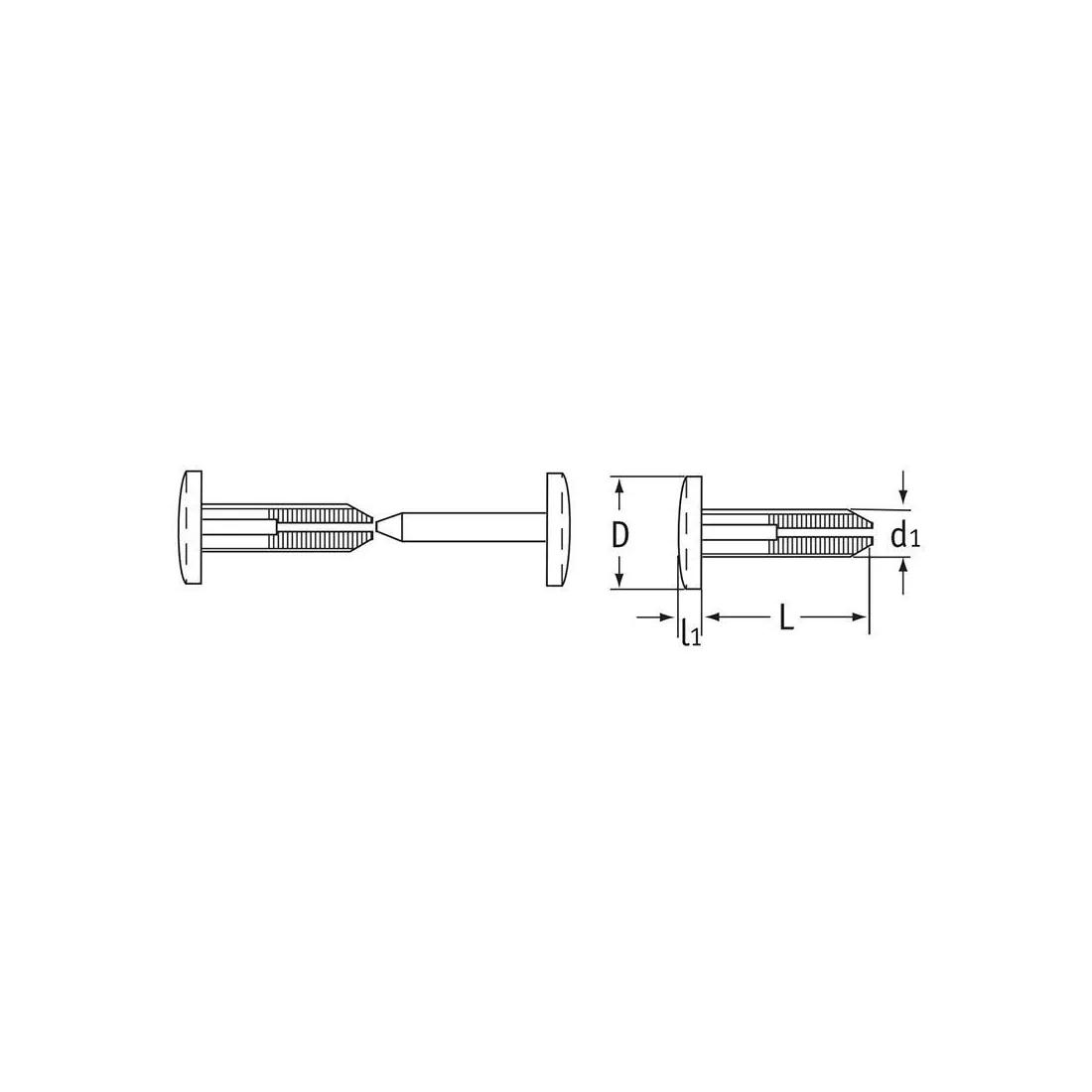

Assembly Clip 13.0 mm 20.0 mm 12.0 mm Nylon White
Clip two Ratchet Rivets together to form a single joining solution, which is suitable for the joining of multiple sheets and panels. Easy and fast to install; the interlocking teeth provide a strong locking function. They have a rigid design that provides an outstanding bond, which is created by the action of the interlocking gripper teeth on the rivet shafts (anchors). Can be used in combination with our range of Snap Rings and Snap Ring Washers, which are available to purchase separately. Requires no tools for installation.
Essentra part number
8100690008VR
Drive Type
Slotted Drive
Colour
White
Shank Diameter
5.0mm
Anchor Length
13.0mm
Rivet Head Shape
Round
Minimum Panel Thickness
13.0mm
Rivet Fitting Style
Ratchet
Maximum Operating Temperature
85°C
Material Flammability Standard
UL94 V-2
Minimum Hole Diameter
5.0mm
Maximum Hole Diameter
8.0mm
Rivet Type
Ratchet Rivet
Head Type
Truss Head
