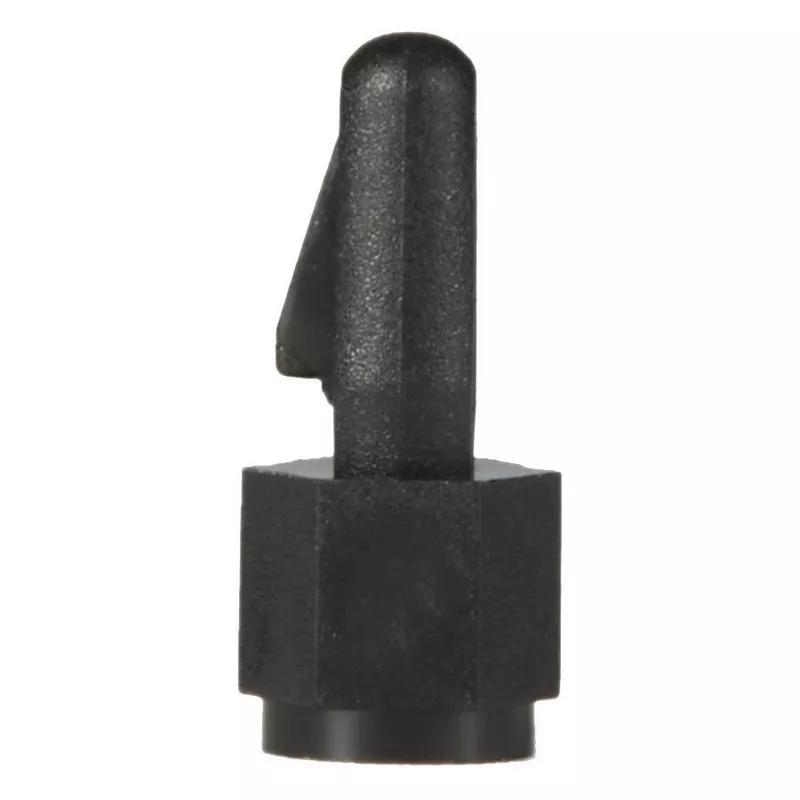

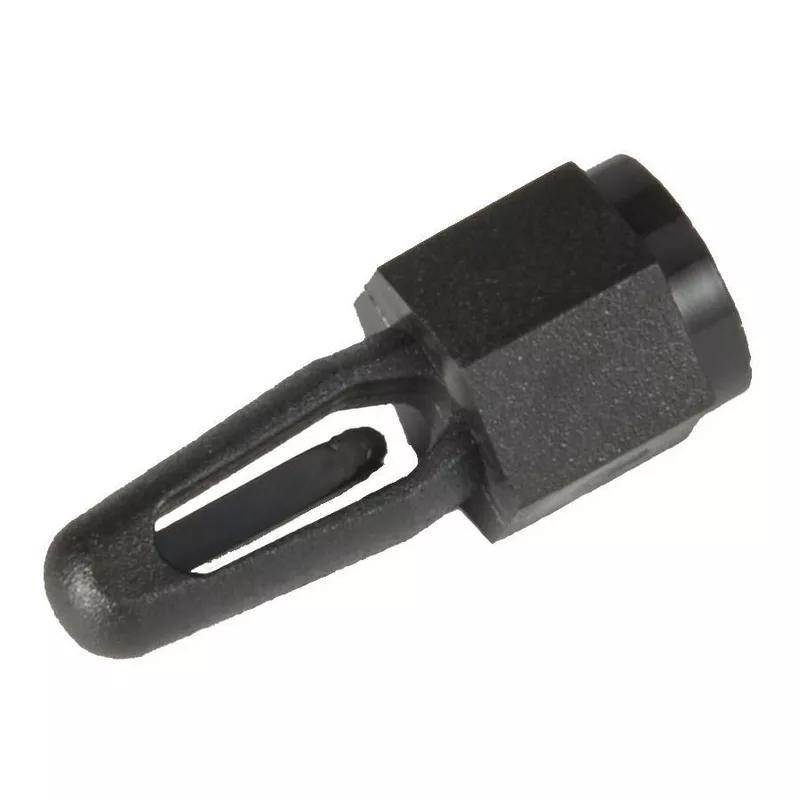

Snap Lock Support 8.0 mm Black Nylon 6/6
This locking bayonet nose spacer has a ribbed body and a bottom female thread for screwing into a base board or panel. This item is manufactured with material rated UL94-HB.
Essentra part number
TCBN-T1-M3-6-8
Internal Thread Size
M3
Material Flammability Standard
UL94 HB
Hole A Fix Type
Snap Lock
Colour
Black
Hole Diameter A
4.0mm
Spacer Length
8.0mm
UL/CSA Description
UL E41938
Distance Across Flats
6.0mm
Locking Head Height
9.5mm
Minimum Operating Temperature
-40°C
Thread Size
M3
Material
Nylon 6/6
Maximum Panel Thickness
1.6mm
