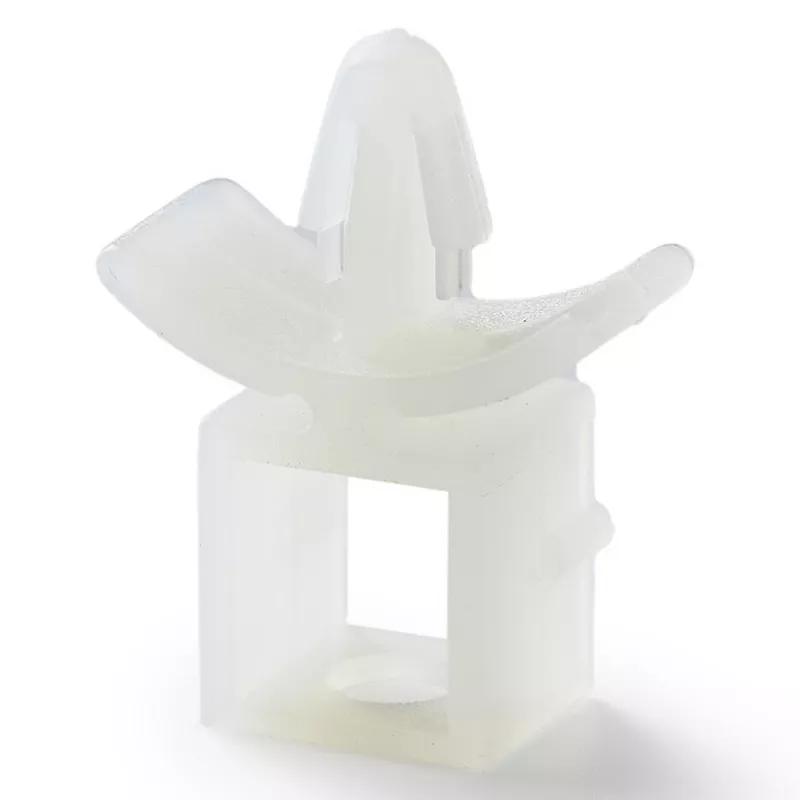

Speciality PCB Support 17.3 (H) Natural Nylon 6/6 (PA 6/6) UL 94 V-2

This stackable spacer can be interlocked as many times as necessary for multiple board stacks. The top board is secured using the MB-1-156 mounting button. This item is manufactured with material rated UL94 V-2

Essentra part number

10001417

Product Attributes

Material Flammability Standard

UL94 V-2

Hole Diameter A

4.0mm

Spacer Length

17.3mm

UL/CSA Description

UL E70062

Hole B Fix Type

Locking Arrowhead Fix

Thickness

1 x 0.8mm

Strap Width

14.3mm

Locking Head Height

5.6mm

Body Width

6.4mm

Maximum Operating Temperature

85°C

Gap Height

2.8 mm

Hole A Fix Type

Mounting Hole Fix

Hole Diameter B

4.0mm
