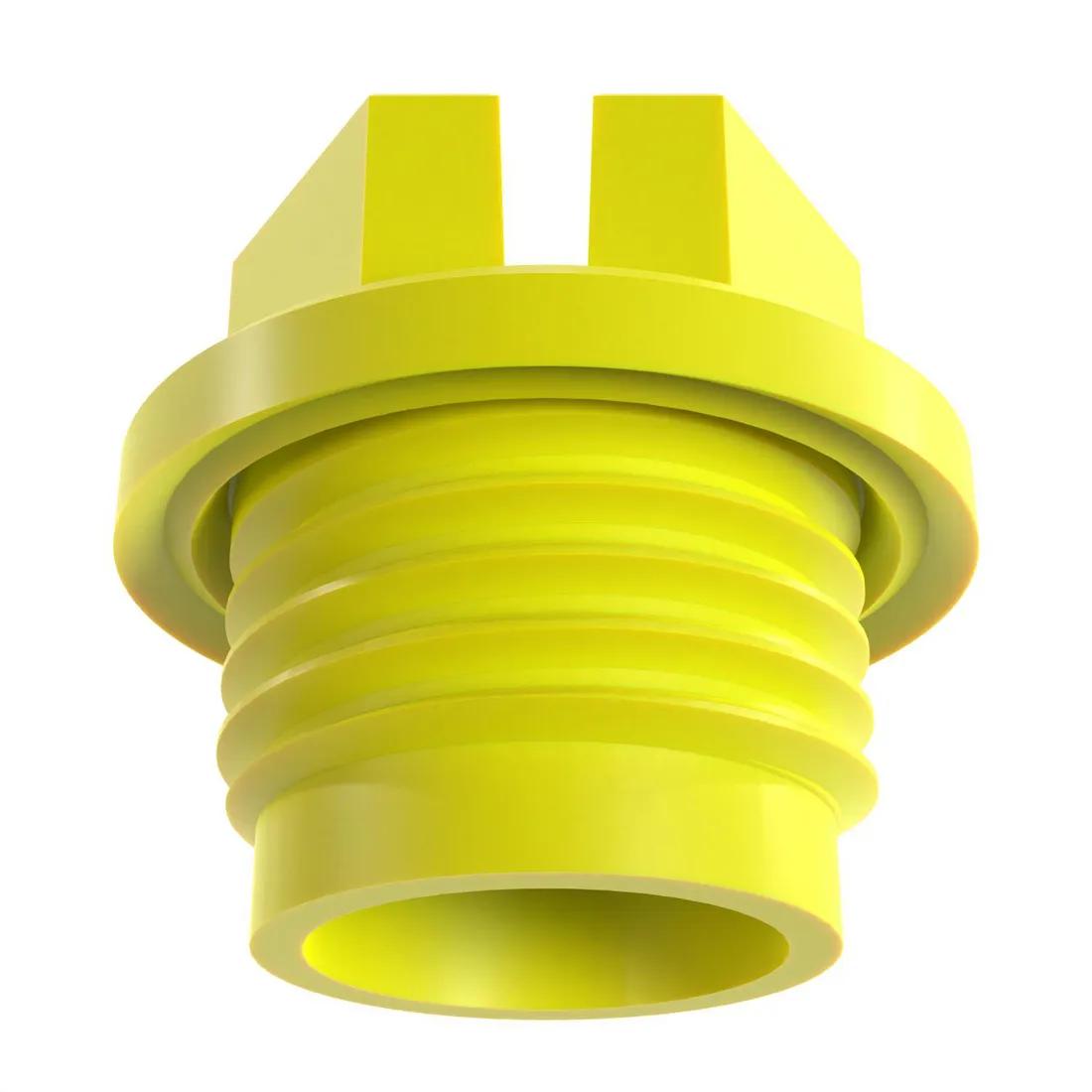

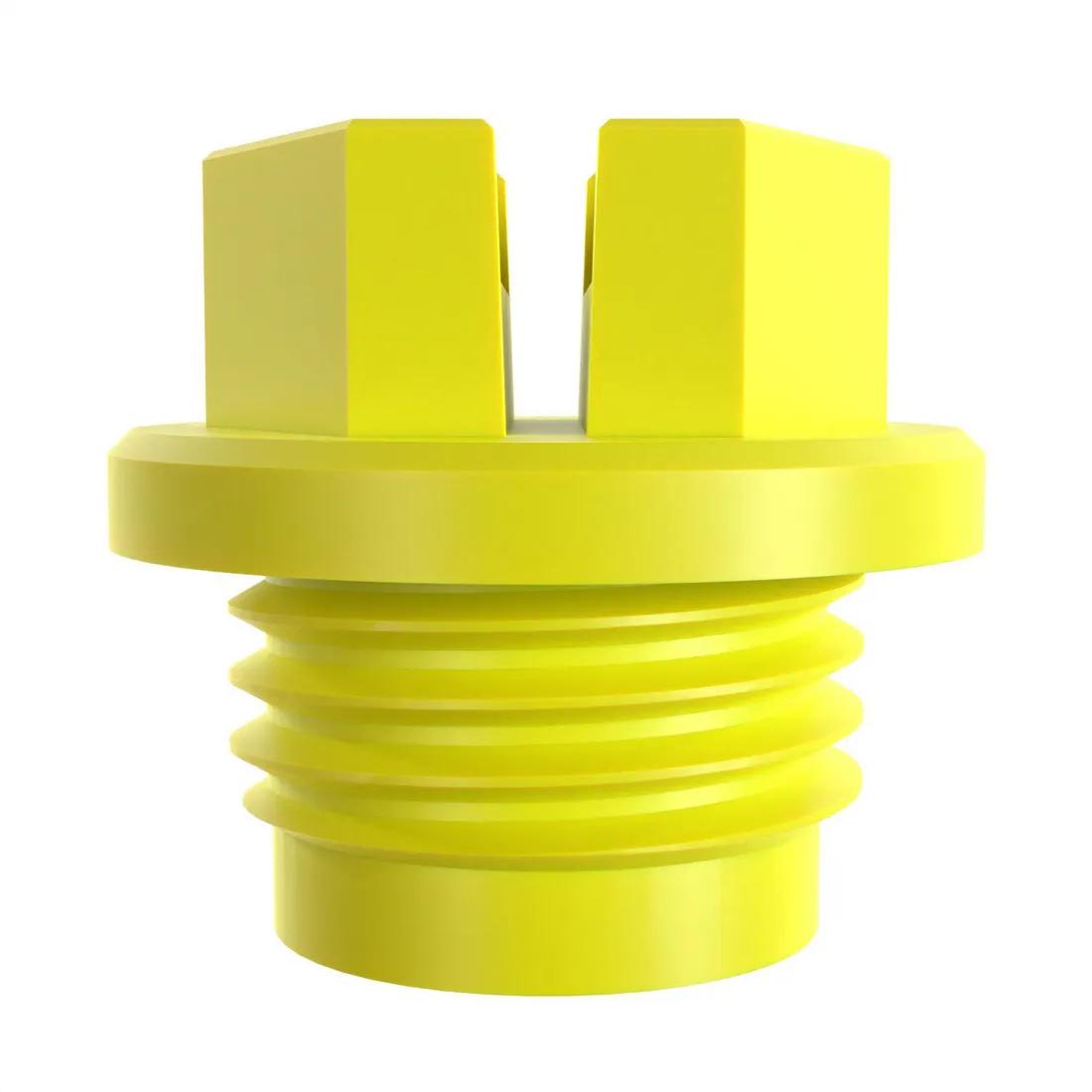

Slottex Plug 14.5 mm Metric Threads Yellow Nylon 6
Sealing Slottex Plugs (Type 3) with an inverted head style, have a double sealing ring on the underside of the flange that provides positive sealing. Head is designed not to trap liquid. Quick and easy to fit using a screwdriver, spanner, socket or Allen key. Can be tightened manually or with a power tool.
Essentra product code:
462837

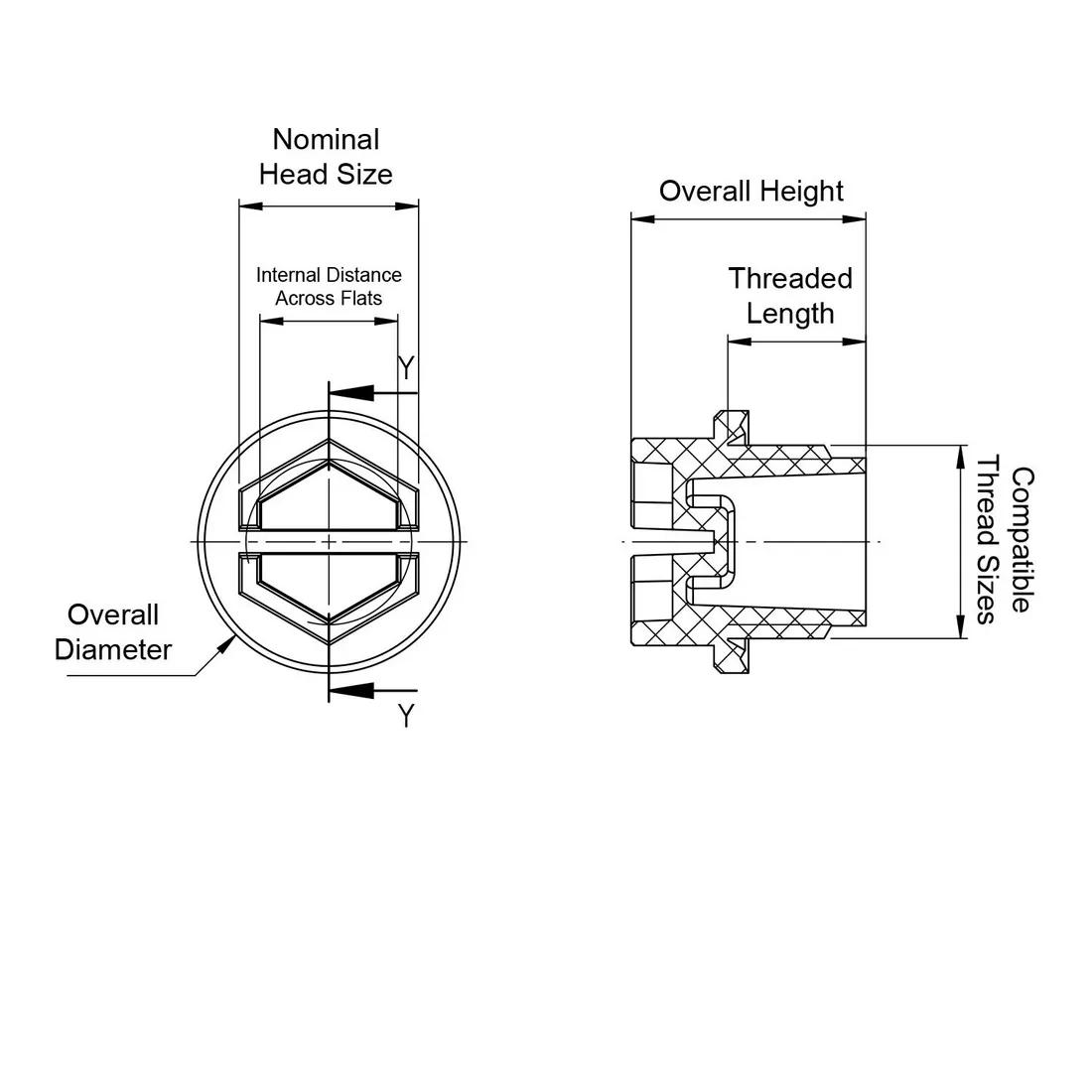

Length Under Head
9.0mm
Internal Distance Across Flats
6.0mm
Sealing
Y
Overall Height
16.5mm
Colour
Yellow
External Distance Across Flats
9.0 mm
Thread Size
M10 x 1;0
Material
Nylon 6
Overall Diameter
14.5mm
