Pull Plug M14 21.0 10.0 TPE Black

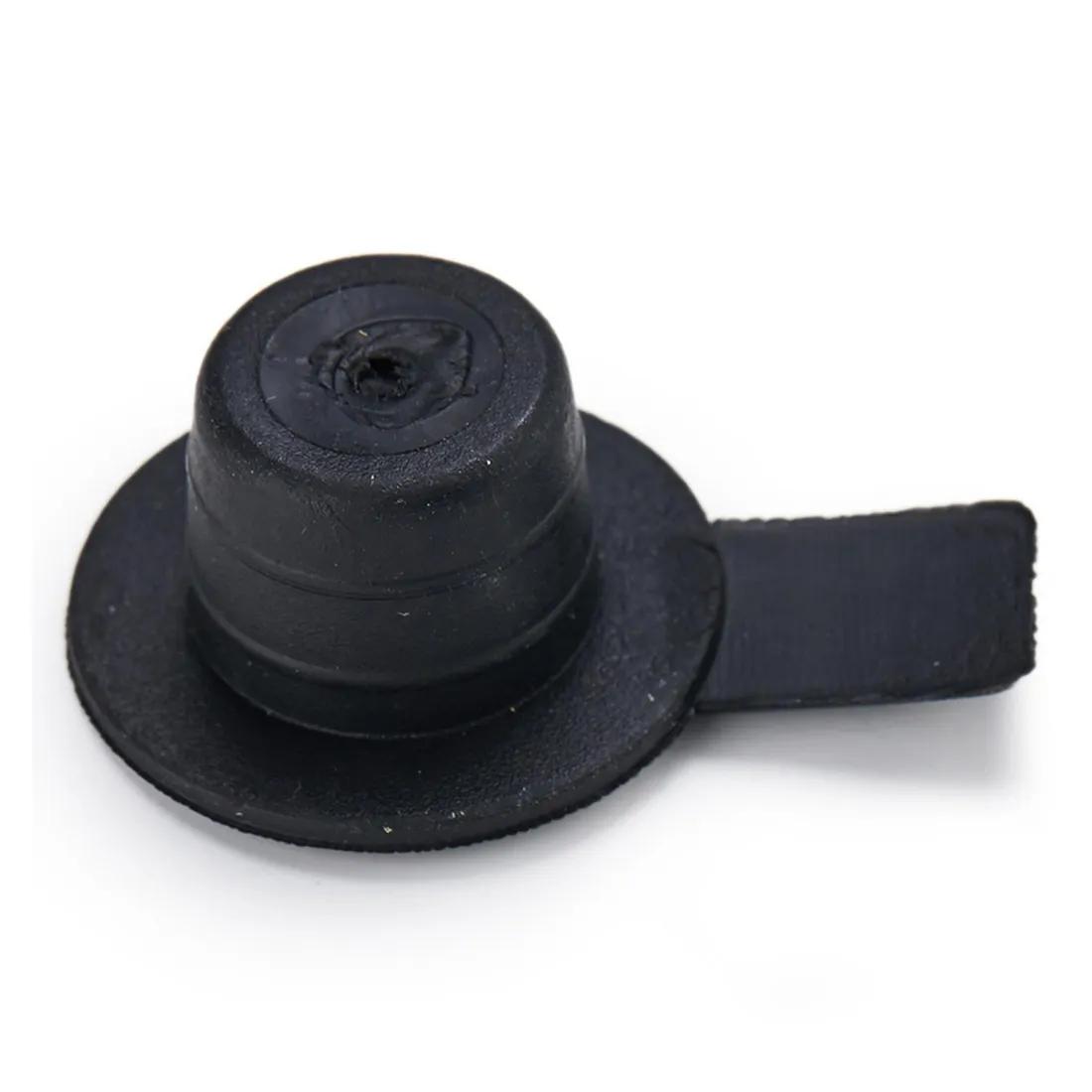

This side pull-tab plug offers an easy and quick side pull tab to remove the part from the application. The tapered plug design allows this part to plug multiple inner diameters. This plug is made out of TPR material which is soft and flexible to provide a tight fight. Excellent for protecting threaded holes and is acid resistant.
Essentra part number
10073735
Colour
Black
Minimum Plug Diameter
13.0mm
Height Under Flange
10.0mm
Pull Direction
Lateral
Maximum Operating Temperature
+135°C
Minimum Operating Temperature
-40°C
Thread Size
M14
Material
TPE/TPV
Overall Height
31.0mm
Maximum Plug Diameter
21.0mm
Flange Length
21.0 mm
Type
2
