SRBP - Body Plugs IP67

Offers protection to IP 67 at maximum panel thickness.

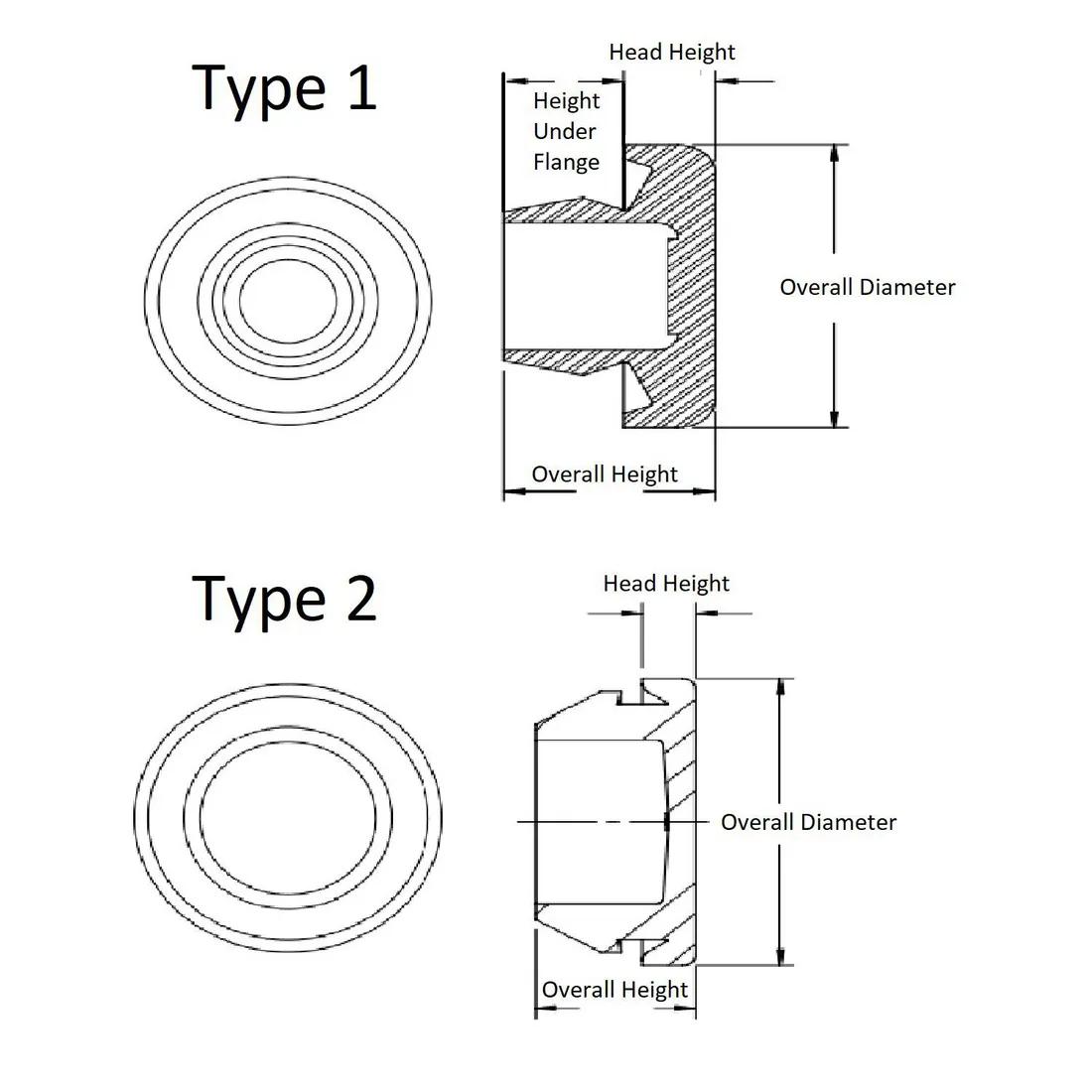

Essentra SRBP - Body Plugs IP67 - Line drawing

1-10 of 10 variants

Per page:

BP-4

ColourBlack

Maximum Panel Thickness2.0mm

Minimum Panel Thickness0.8mm

Variant DescriptionThis Body Plug securely seal openings or holes such as sharp edges or other cavities. It provides a clean finish and is a quick fix thanks to its push fit fitting style. It can withstand temperatures from -40°C to +135°C. Black TPE/TPV that is Ul94-HB and IP67. Fits panel thickness of 0.8 to 2.0 mm.

Height Under Flange8.0mm

Overall Height12.0mm

Maximum Operating Temperature50°C

Minimum Operating Temperature-40°C

MaterialTPE

Mounting Hole Diameter26.5mm

Head Height4.0mm

TitleBody Plug 26.5 mm 1.6 mm 3.0 mm TPE Black

Type2

Material Flammability Standard-

BP-3

ColourBlack

Maximum Panel Thickness3.0mm

Minimum Panel Thickness1.6mm

Height Under Flange8.0mm

Overall Height12.0mm

Maximum Operating Temperature50°C

Minimum Operating Temperature-40°C

MaterialTPE

Mounting Hole Diameter22.0mm

Head Height4.0mm

TitleBody Plug 22.0 mm 1.6 mm 3.0 mm TPE Black

Type2

Material Flammability Standard-

BP-16230

ColourBlack

Maximum Panel Thickness2.0mm

Minimum Panel Thickness0.8mm

Variant DescriptionThis Body Plug is designed to securely seal openings or holes such as sharp edges or other cavities. It provides a clean finish and is a quick fix thanks to its push fit fitting style. It can withstand temperatures from -40°C to +135°C. Black made from TPR and offers IP67 protection.

Height Under Flange5.9mm

Overall Height10.9mm

Maximum Operating Temperature95°C

Minimum Operating Temperature-50°C

MaterialTPE

Mounting Hole Diameter10.0mm

Head Height5.0mm

TitleBody Plug 10.0 mm 0.8 mm 2.0 mm TPE Black

Type1

Material Flammability Standard-

BP-16232

ColourBlack

Maximum Panel Thickness2.0mm

Minimum Panel Thickness0.8mm

Height Under Flange6.4mm

Overall Height11.4mm

Maximum Operating Temperature95°C

Minimum Operating Temperature-50°C

MaterialTPE

Mounting Hole Diameter14.0mm

Head Height5.0mm

TitleBody Plug 14.0 mm 0.8 mm 2.0 mm TPE Black

Type1

Material Flammability Standard-

BP-16236

ColourBlack

Maximum Panel Thickness2.0mm

Minimum Panel Thickness0.8mm

Height Under Flange5.9mm

Overall Height10.9mm

Maximum Operating Temperature95°C

Minimum Operating Temperature-50°C

MaterialTPE

Mounting Hole Diameter22.0mm

Head Height4.5mm

TitleBody Plug 22.0 mm 0.8 mm 2.0 mm TPE Black

Type1

Material Flammability Standard-

BP-16238

ColourBlack

Maximum Panel Thickness2.0mm

Minimum Panel Thickness0.8mm

Height Under Flange6.45mm

Overall Height10.7mm

Maximum Operating Temperature95°C

Minimum Operating Temperature-50°C

MaterialTPE

Mounting Hole Diameter30.0mm

Head Height4.25mm

TitleBody Plug 30.0 mm 0.8 mm 2.0 mm TPE Black

Type1

Material Flammability Standard-

BP-16231

ColourBlack

Maximum Panel Thickness2.0mm

Minimum Panel Thickness0.8mm

Height Under Flange6.4mm

Overall Height11.4mm

Maximum Operating Temperature95°C

Minimum Operating Temperature-50°C

MaterialTPE

Mounting Hole Diameter12.0mm

Head Height5.0mm

TitleBody Plug 12.0 mm 0.8 mm 2.0 mm TPE Black

Type1

Material Flammability Standard-

BP-16234

ColourBlack

Maximum Panel Thickness2.0mm

Minimum Panel Thickness0.8mm

Height Under Flange6.4mm

Overall Height11.4mm

Maximum Operating Temperature95°C

Minimum Operating Temperature-50°C

MaterialTPE

Mounting Hole Diameter18.0mm

Head Height5.0mm

TitleBody Plug 18.0 mm 0.8 mm 2.0 mm TPE Black

Type1

Material Flammability Standard-

BP-1

ColourBlack

Maximum Panel Thickness3.0mm

Minimum Panel Thickness1.6mm

Variant Description-

Height Under Flange-

Overall Height12.0mm

Maximum Operating Temperature90°C

Minimum Operating Temperature-60°C

MaterialTPE

Mounting Hole Diameter22.0mm

Head Height4.0mm

Title-

Type2

Material Flammability StandardUL94 HB;UL94 V-1

BP-2

ColourBlack

Maximum Panel Thickness3.0mm

Minimum Panel Thickness1.6mm

Variant Description-

Height Under Flange-

Overall Height12.0mm

Maximum Operating Temperature90°C

Minimum Operating Temperature-60°C

MaterialTPE

Mounting Hole Diameter26.5mm

Head Height4.0mm

Title-

Type2

Material Flammability StandardUL94 HB;UL94 V-1

Per page:

1-10 of 10

Cable Ties and Cable Management

Explore All Cable Ties and Cable Management

Grommets, Strain Relief and Blanking Plugs

Explore All Grommets, Strain Relief and Blanking Plugs

SRBP - Body Plugs IP67

Offers protection to IP 67 at maximum panel thickness.

Showing 1-10 of 10 variants

Per page:

1-10 of 10

Item Code	Colour	Maximum Panel Thickness	Minimum Panel Thickness	Variant Description	Height Under Flange	Overall Height	Maximum Operating Temperature	Minimum Operating Temperature	Material	Mounting Hole Diameter	Head Height	Title	Type	Material Flammability Standard
BP-4	Black	2.0mm	0.8mm	This Body Plug securely seal openings or holes such as sharp edges or other cavities. It provides a clean finish and is a quick fix thanks to its push fit fitting style. It can withstand temperatures from -40°C to +135°C. Black TPE/TPV that is Ul94-HB and IP67. Fits panel thickness of 0.8 to 2.0 mm.	8.0mm	12.0mm	50°C	-40°C	TPE	26.5mm	4.0mm	Body Plug 26.5 mm 1.6 mm 3.0 mm TPE Black	2	-
BP-3	Black	3.0mm	1.6mm	This Body Plug securely seal openings or holes such as sharp edges or other cavities. It provides a clean finish and is a quick fix thanks to its push fit fitting style. It can withstand temperatures from -40°C to +135°C. Black TPE/TPV that is Ul94-HB and IP67. Fits panel thickness of 1.6 to 3.0 mm.	8.0mm	12.0mm	50°C	-40°C	TPE	22.0mm	4.0mm	Body Plug 22.0 mm 1.6 mm 3.0 mm TPE Black	2	-
BP-16230	Black	2.0mm	0.8mm	This Body Plug is designed to securely seal openings or holes such as sharp edges or other cavities. It provides a clean finish and is a quick fix thanks to its push fit fitting style. It can withstand temperatures from -40°C to +135°C. Black made from TPR and offers IP67 protection.	5.9mm	10.9mm	95°C	-50°C	TPE	10.0mm	5.0mm	Body Plug 10.0 mm 0.8 mm 2.0 mm TPE Black	1	-
BP-16232	Black	2.0mm	0.8mm	This Body Plug is designed to securely seal openings or holes such as sharp edges or other cavities. It provides a clean finish and is a quick fix thanks to its push fit fitting style. It can withstand temperatures from -40°C to +135°C. Black made from TPR and offers IP67 protection.	6.4mm	11.4mm	95°C	-50°C	TPE	14.0mm	5.0mm	Body Plug 14.0 mm 0.8 mm 2.0 mm TPE Black	1	-
BP-16236	Black	2.0mm	0.8mm	This Body Plug is designed to securely seal openings or holes such as sharp edges or other cavities. It provides a clean finish and is a quick fix thanks to its push fit fitting style. It can withstand temperatures from -40°C to +135°C. Black made from TPR and offers IP67 protection.	5.9mm	10.9mm	95°C	-50°C	TPE	22.0mm	4.5mm	Body Plug 22.0 mm 0.8 mm 2.0 mm TPE Black	1	-
BP-16238	Black	2.0mm	0.8mm	This Body Plug is designed to securely seal openings or holes such as sharp edges or other cavities. It provides a clean finish and is a quick fix thanks to its push fit fitting style. It can withstand temperatures from -40°C to +135°C. Black made from TPR and offers IP67 protection.	6.45mm	10.7mm	95°C	-50°C	TPE	30.0mm	4.25mm	Body Plug 30.0 mm 0.8 mm 2.0 mm TPE Black	1	-
BP-16231	Black	2.0mm	0.8mm	This Body Plug is designed to securely seal openings or holes such as sharp edges or other cavities. It provides a clean finish and is a quick fix thanks to its push fit fitting style. It can withstand temperatures from -40°C to +135°C. Black made from TPR and offers IP67 protection.	6.4mm	11.4mm	95°C	-50°C	TPE	12.0mm	5.0mm	Body Plug 12.0 mm 0.8 mm 2.0 mm TPE Black	1	-
BP-16234	Black	2.0mm	0.8mm	This Body Plug is designed to securely seal openings or holes such as sharp edges or other cavities. It provides a clean finish and is a quick fix thanks to its push fit fitting style. It can withstand temperatures from -40°C to +135°C. Black made from TPR and offers IP67 protection.	6.4mm	11.4mm	95°C	-50°C	TPE	18.0mm	5.0mm	Body Plug 18.0 mm 0.8 mm 2.0 mm TPE Black	1	-
BP-1	Black	3.0mm	1.6mm	-	-	12.0mm	90°C	-60°C	TPE	22.0mm	4.0mm	-	2	UL94 HB;UL94 V-1
BP-2	Black	3.0mm	1.6mm	-	-	12.0mm	90°C	-60°C	TPE	26.5mm	4.0mm	-	2	UL94 HB;UL94 V-1
