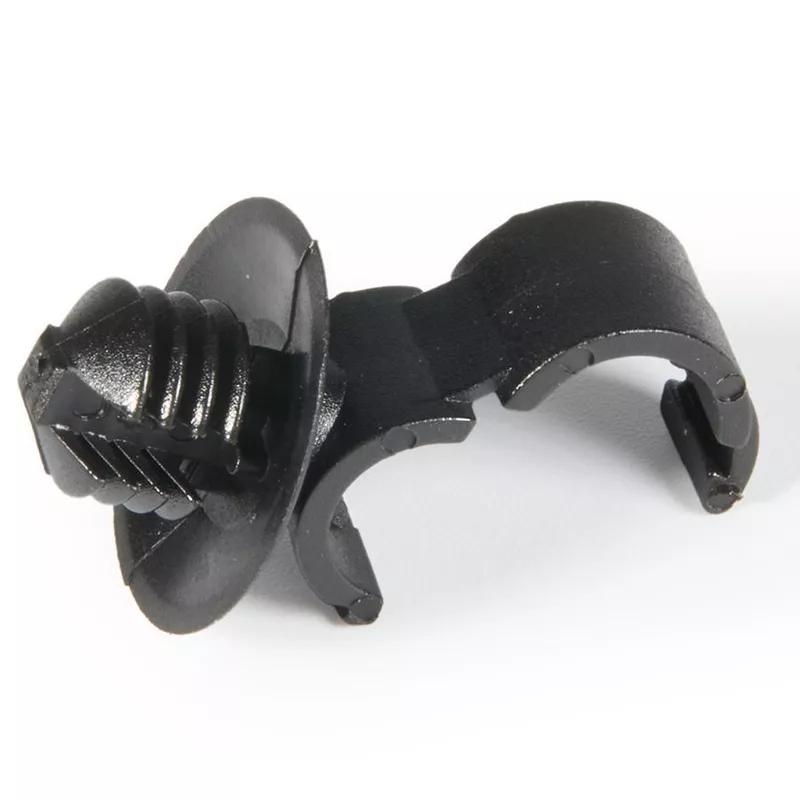

Cable Clamp Push-In 0.8 mm 3.0 mm Nylon 6/6 Black
Hinged locking clamp securely holds corrugated or convoluted tubing and other bundles. It has an internal rib spanning the diameter of the clamp providing a tight grip and has a releasable latch that is convenient for maintenance or re-routing. The large base ensure stable mounting.
Essentra part number
10010037

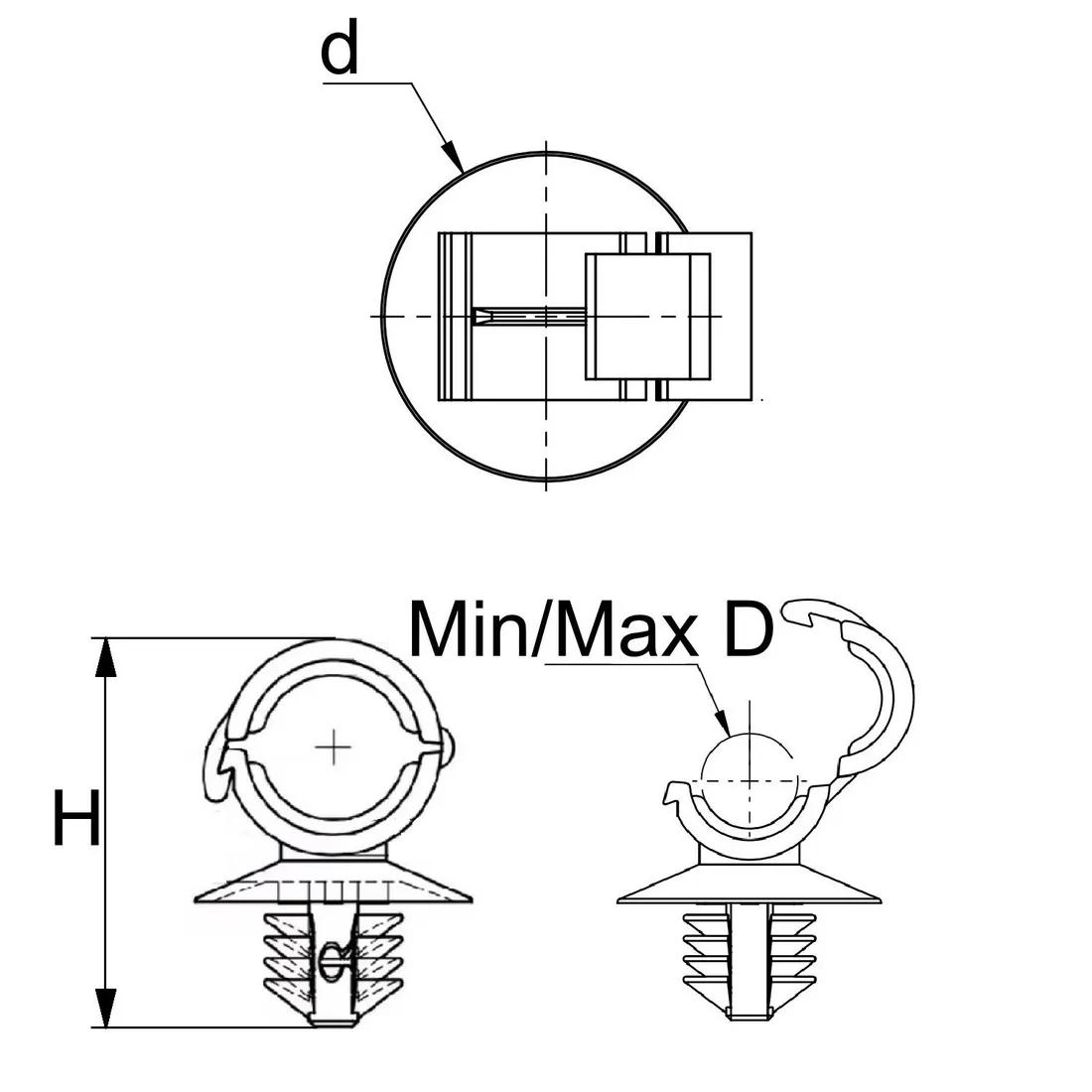

Maximum Cable Bundle Diameter
9.6mm
Colour
Black
Maximum Mounting Hole Size
7.0mm
Inside Diameter
5.8mm
Maximum Panel Thickness
3.0mm
Minimum Panel Thickness
0.8mm
Overall Height
19.7mm
Maximum Diameter
7.2mm
Material Flammability Standard
UL94 V-2
Mounting Method
Push-In
Minimum Operating Temperature
-40°C
Material
Nylon 6/6
Minimum Cable Bundle Diameter
7.2mm
