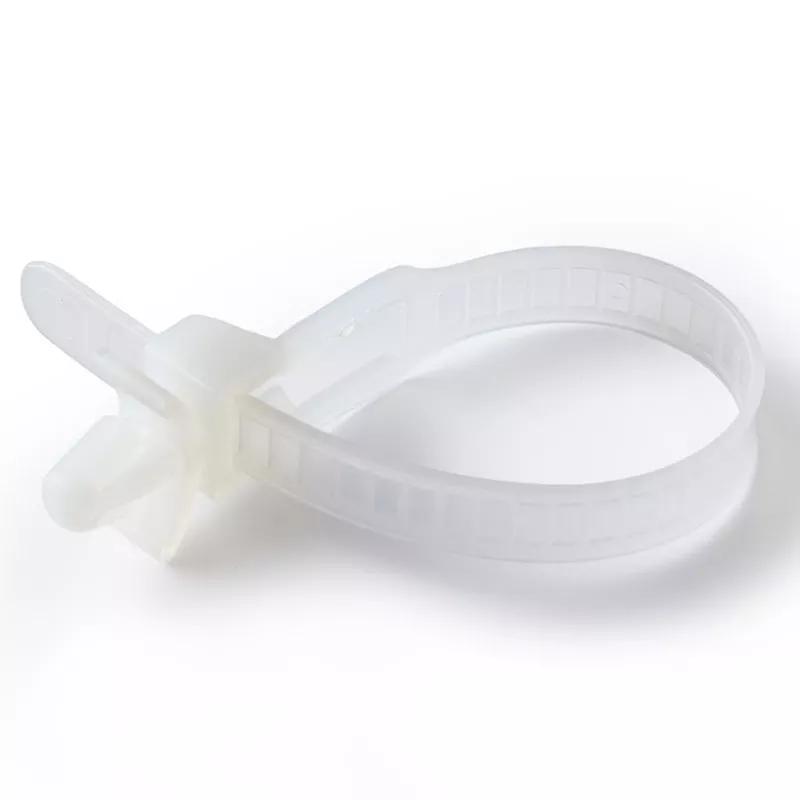

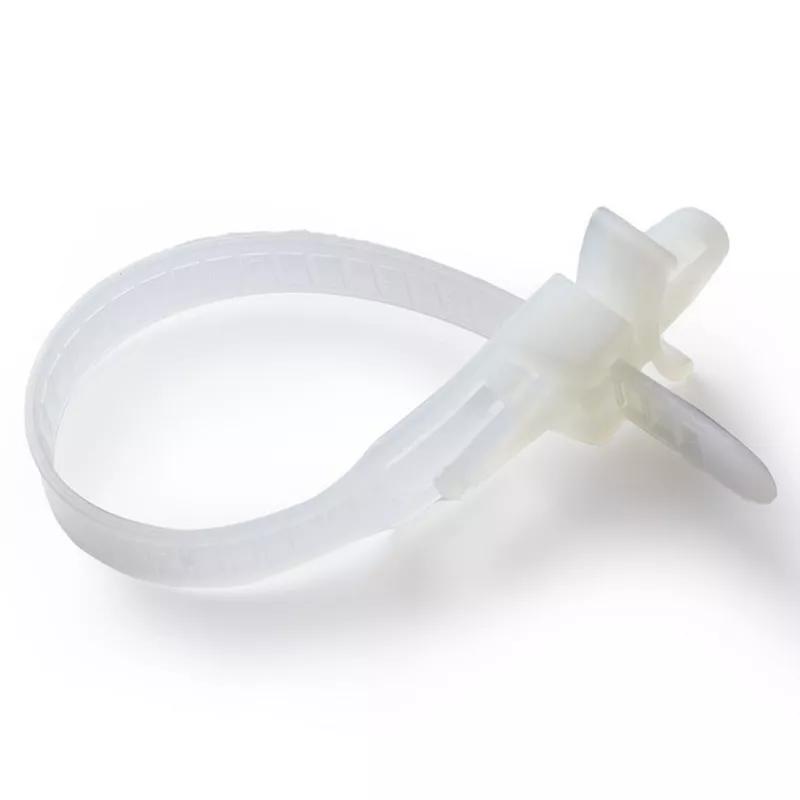

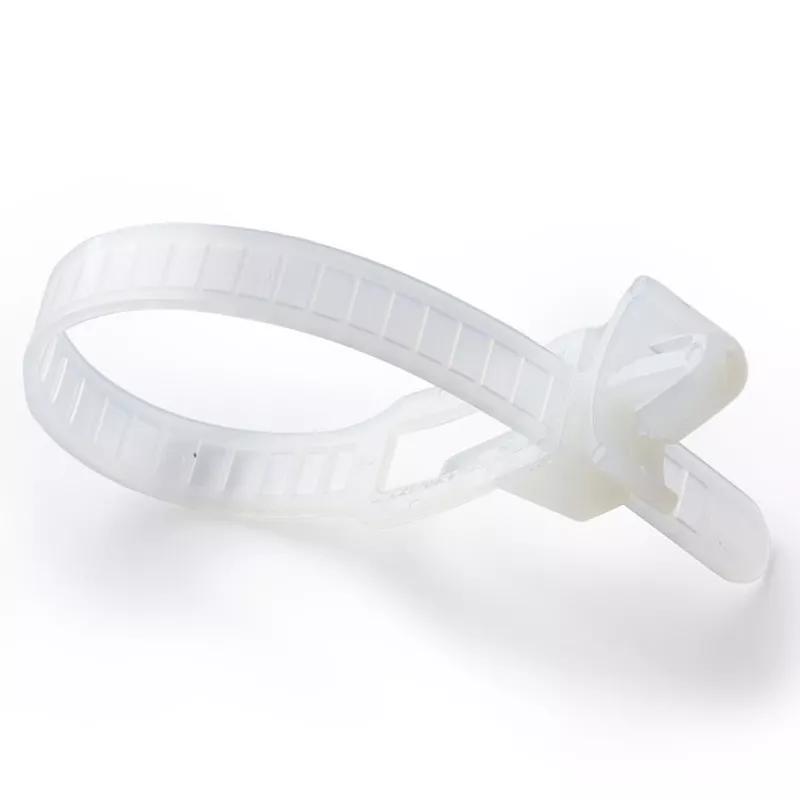

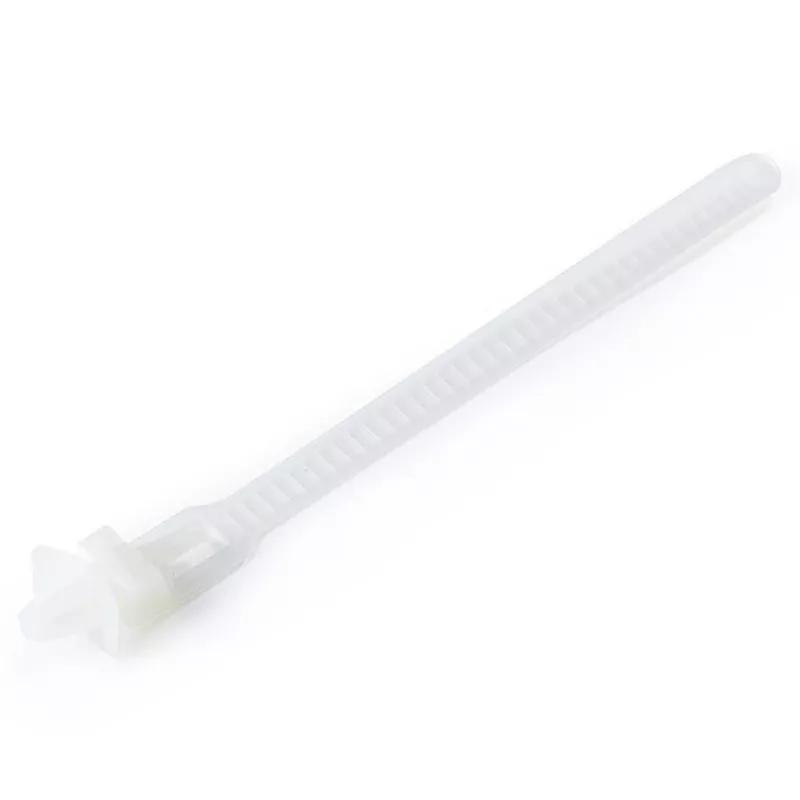

Cable Tie 118.6 (L) 28.6 (Cable DIA) Natural Nylon 6/6 (PA 6/6)
This cable tie is made of natural UL94-V-2 nylon 6/6. It is fitted with a barbed fastener to fit into a blind hole of 6.35 mm with a panel thickness of 1.6 mm.
Essentra part number
10036228
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
28.5mm
Colour
Natural
Clip Length
19.1mm
Cable Width
1.0mm
Strap Width
7.1mm
Panel Thickness
1.6mm
Maximum Operating Temperature
85°C
Minimum Operating Temperature
-40°C
Material
Nylon 6/6
Overall Width
16.0mm
Spacer Length
19.1mm
Overall Length
118.6mm
