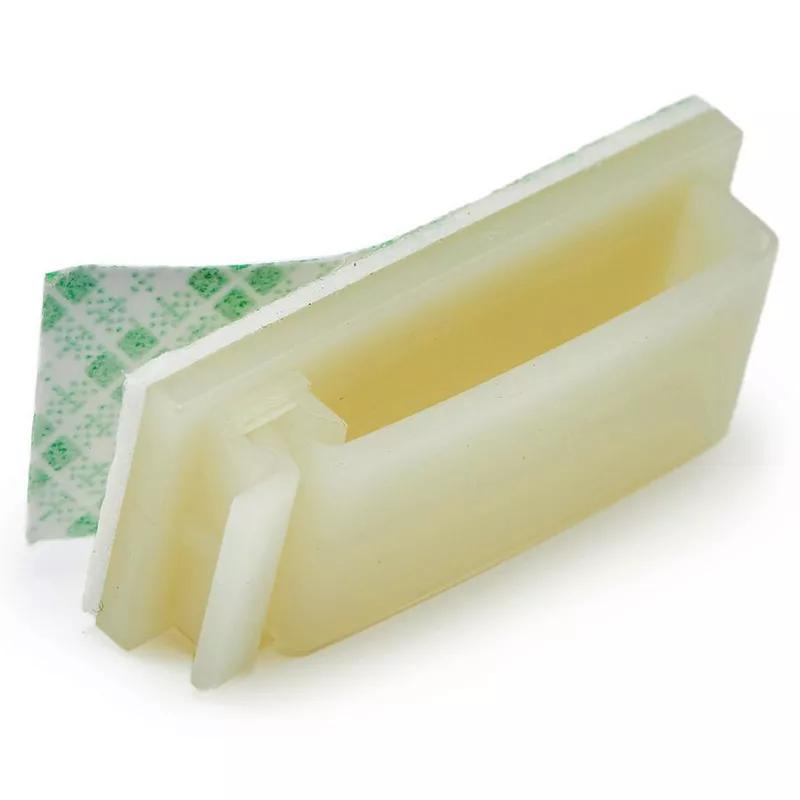

Flat Cable Clamp 19.0 mm 78.2 mm Natural Nylon 6/6
Flat Cable Clamp used for a quick positive clamping of flat cable up to 50 conductors wide. Its adhesive base and latch allows for quick addition and removal of cables. It also secure them in place, and prevent them from shifting or moving out of position. Made of natural UL94-V-0 nylon.
Essentra part number
10006092
Material Flammability Standard
UL94 V-0
Colour
Natural
Inside Height
15.0mm
Overall Length
78.2mm
Adhesive Material
Double Coated Polyurethane Foam Tape
Inside Length
64.6mm
Maximum Operating Temperature
110°C
Minimum Operating Temperature
-40°C
Material
Nylon 6/6
Overall Width
18.9mm
Number of Conductors
50
Overall Height
19.0mm
Clip Height
19.0mm
