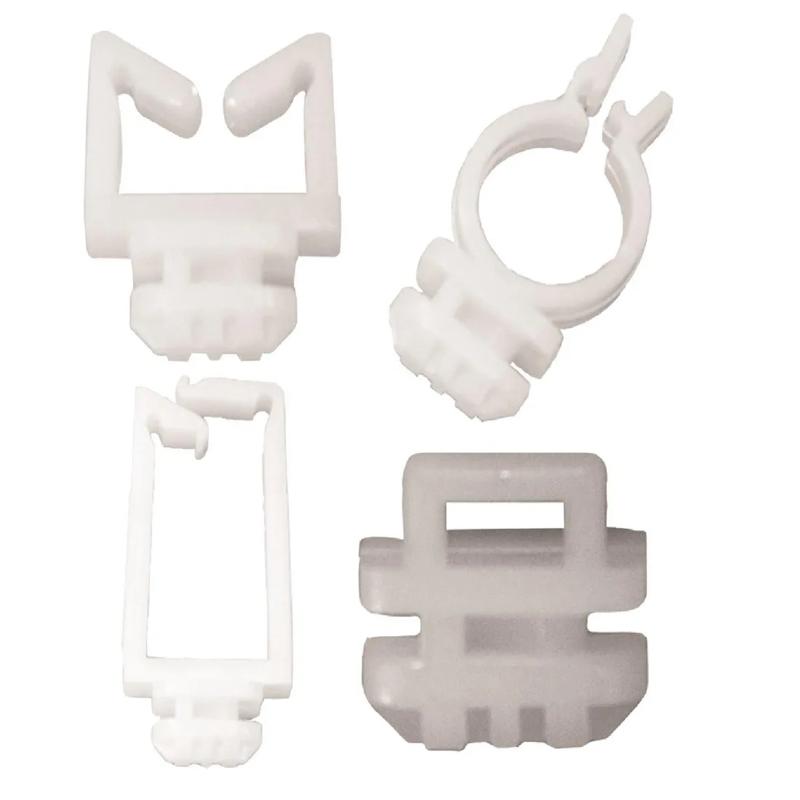

SR6263 - Extruded Metal Rail Cable Clips
Several different mounting options.Pre location for easier mounting. Available in several channel depthes and X rail sizes. A choice of Twist Locking or Push In installation. Lightweight.
Item Code | Material Flammability Standard | Colour | Rail Height | Material | Spacer Length | Anchor Length | Base Width | Rail Type | Clip Height | Rail Width | Clip Width | Type | Cable Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
XRC3-LWS01 | UL94 V-2 | Natural | 30.0mm | Glass-Filled Nylon 6/6 | 2.3mm | 3.1mm | 13.0mm | Ép đùn | 27.3mm | 30.0mm | 15.3mm | 2 | - | |
XRC4-WS101 | UL94 V-2 | Natural | 40.0mm | Glass-Filled Nylon 6/6 | 6.2mm | 3.1mm | 16.0mm | Ép đùn | 12.9mm | 40.0mm | 15.3mm | 1 | - | |
XRC2-TH01 | UL94 V-2 | Natural | 20.0mm | Glass-Filled Nylon 6/6 | 1.6mm | 3.1mm | 10.0mm | Ép đùn | - | 20.0mm | 10.0mm | 4 | 3.9mm | |
XRC4-WSLT01 | UL94 V-2 | Natural | 40.0mm | Glass-Filled Nylon 6/6 | 6.2mm | 3.1mm | 16.0mm | Ép đùn | 20.0mm | 40.0mm | 16.0mm | 3 | 8.9mm | |
XRC4-TH01 | UL94 V-2 | Natural | 40.0mm | Glass-Filled Nylon 6/6 | 6.15mm | 3.1mm | 16.0mm | Ép đùn | - | 40.0mm | 16.0mm | 4 | 3.9mm | |
XRC3-TH01 | UL94 V-2 | Natural | 30.0mm | Glass-Filled Nylon 6/6 | 2.3mm | 3.1mm | 13.0mm | Ép đùn | - | 30.0mm | 13.0mm | 4 | 3.9mm | |
XRC2-LWS01 | UL94 V-2 | Natural | 20.0mm | Glass-Filled Nylon 6/6 | 1.6mm | 3.1mm | 10.0mm | Ép đùn | 27.3mm | 20.0mm | 15.3mm | 2 | - | |
XRC3-WSLT01 | UL94 V-2 | Natural | 30.0mm | Glass-Filled Nylon 6/6 | 2.3mm | 3.1mm | 13.0mm | Ép đùn | 20.0mm | 30.0mm | 13.0mm | 3 | 8.9mm | |
XRC4-LWS01 | UL94 V-2 | Natural | 40.0mm | Glass-Filled Nylon 6/6 | 6.2mm | 3.1mm | 16.0mm | Ép đùn | 27.3mm | 40.0mm | 15.3mm | 2 | - |
XRC3-LWS01
Material Flammability Standard
UL94 V-2
Colour
Natural
Rail Height
30.0mm
Material
Glass-Filled Nylon 6/6
XRC4-WS101
Material Flammability Standard
UL94 V-2
Colour
Natural
Rail Height
40.0mm
Material
Glass-Filled Nylon 6/6
XRC2-TH01
Material Flammability Standard
UL94 V-2
Colour
Natural
Rail Height
20.0mm
Material
Glass-Filled Nylon 6/6
XRC4-WSLT01
Material Flammability Standard
UL94 V-2
Colour
Natural
Rail Height
40.0mm
Material
Glass-Filled Nylon 6/6
